6.4.6 Wiper Unit
1
2
3
4
5
6
7
8
5. When replacing only the motor, remove the wiper drive link and
the screws to detach the motor.
6. Reverse the disassembly procedure for reassembly.

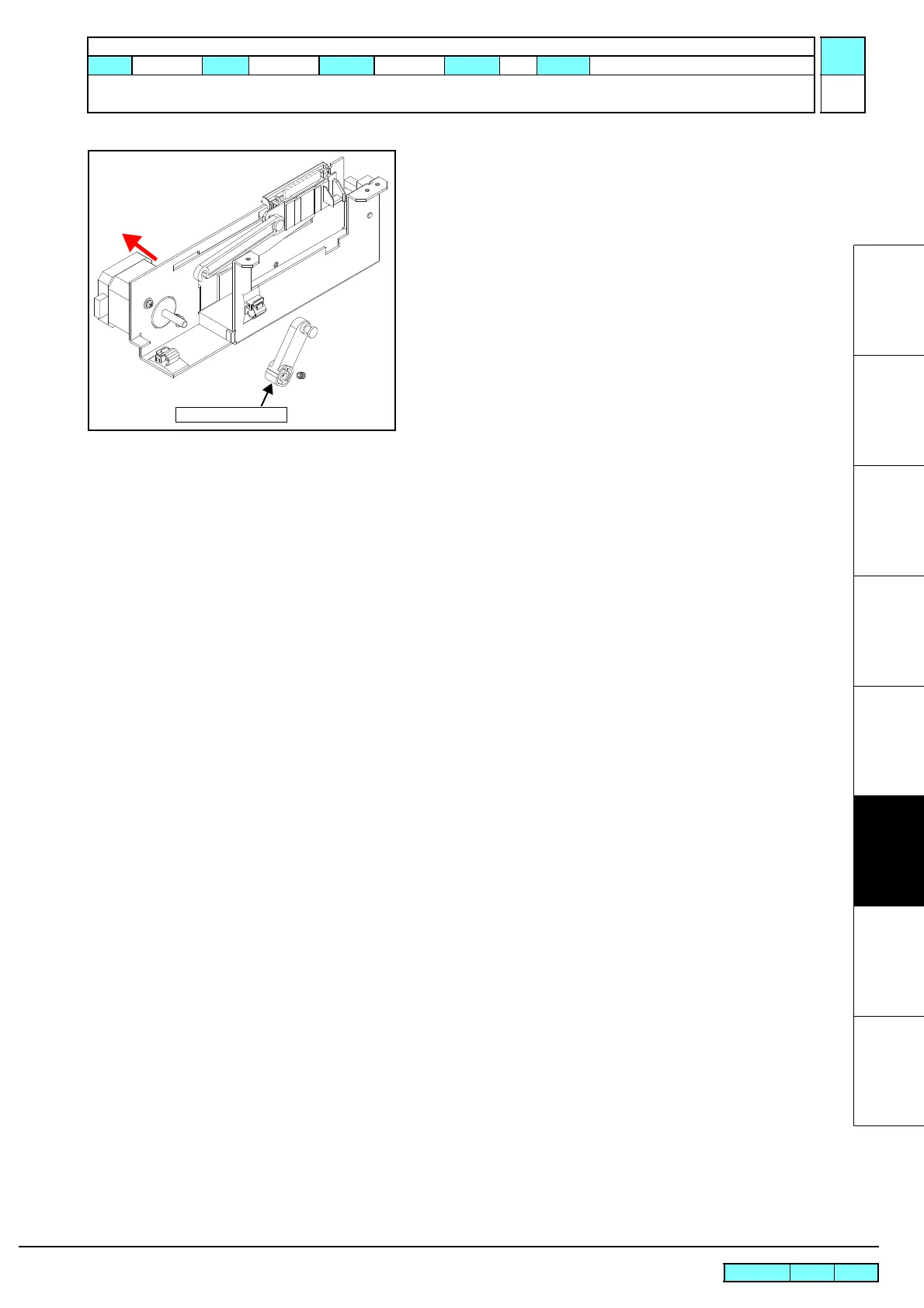

Wiper Drive Link
R.1.0
Maintenance Manual > Disassembly and Reassembly > Drive System > Wiper Unit
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
