MIMAKI CJV30 Series User Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.4.7 P.2

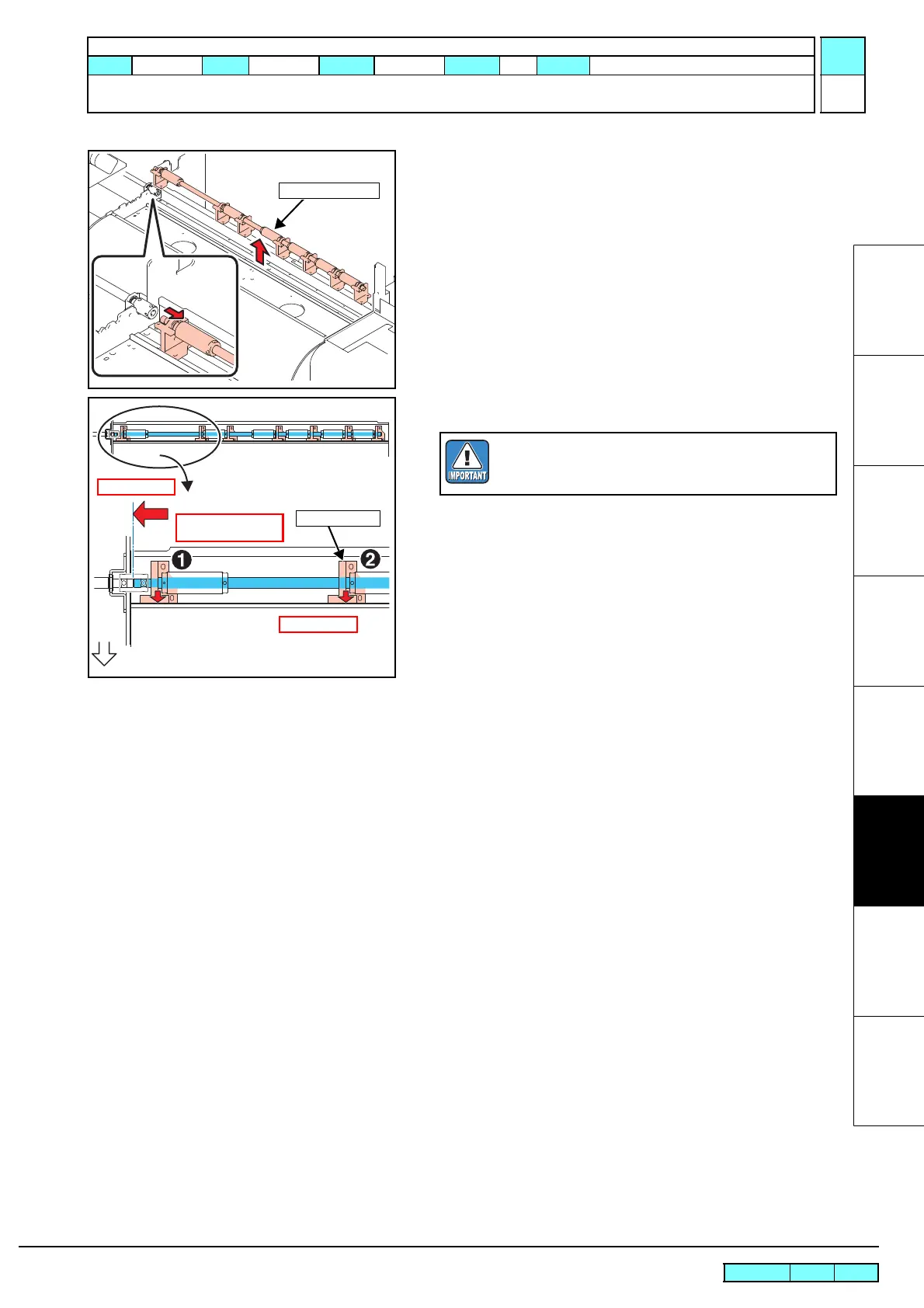

6.4.7 GR Roller Assy
1
2
3
4
5
6
7
8
5. Disconnect the left end of the shaft from the PF coupling and
remove the GR roller assy.
6. Reverse the disassembly procedure for reassembly.
GR Roller Assy
BR Holder 30
Press against
Front of the printer
Press against
Tighten the screws
in order from left
For installation, tighten the screws in order, starting
with the leftmost one while pushing the shaft to the
left and pushing the BR holder 30 toward the front.
R.1.1
Maintenance Manual > Disassembly and Reassembly > Drive System > GR Roller Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
