6.5.2 Main PCB Assy
1
2
3
4
5
6
7
8

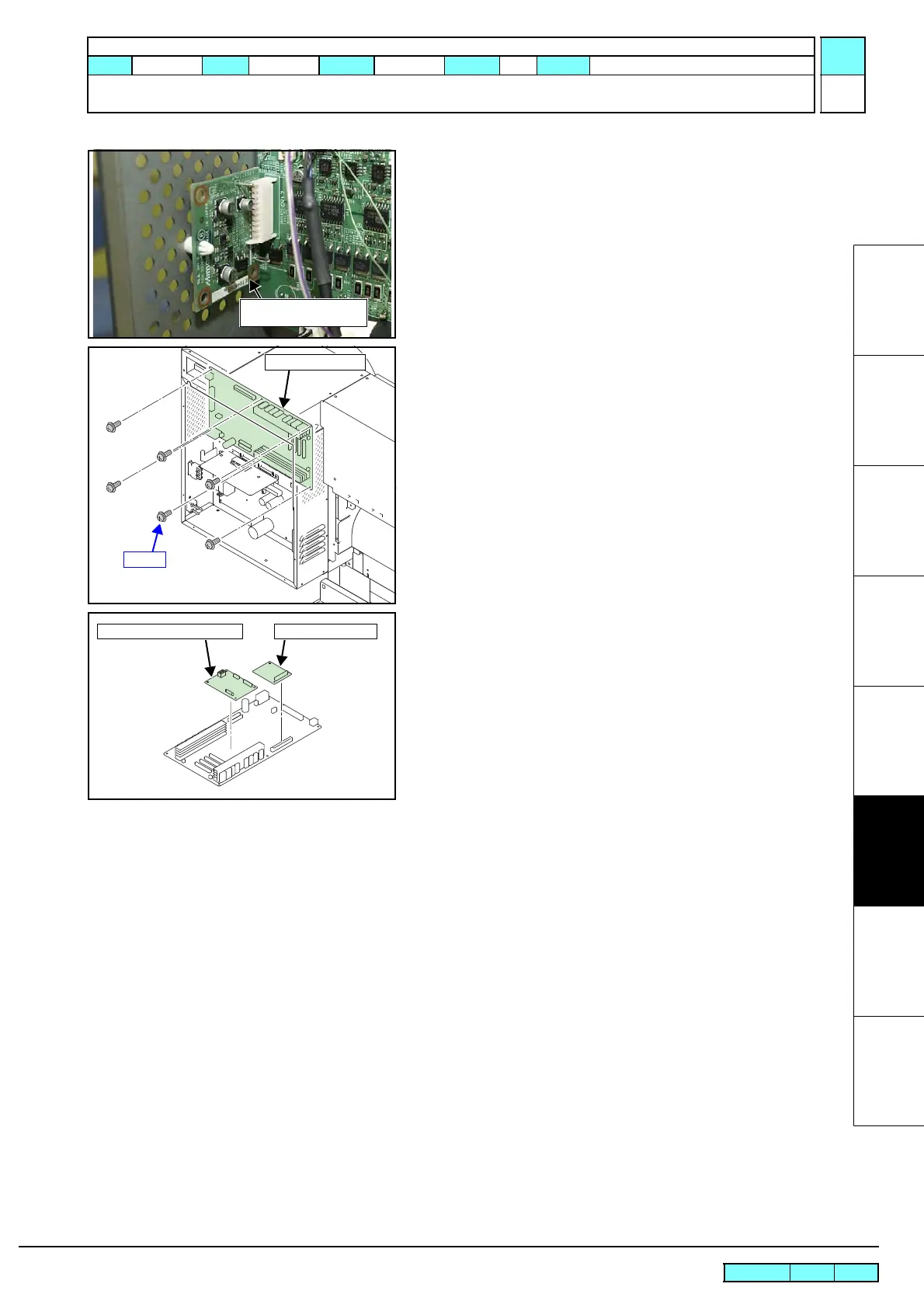

4. Draw the regenerative resistance PCB assy out of the main
PCB assy.
5. Remove the main PCB assy.
6. Remove the following PCB from the removed main PCB assy.
• PRAM PCB Assy
• Cutter Driver PCB Assy
7. Reverse the disassembly procedure for reassembly.
Regenerative Resistance
PCB Assy
Main PCB Assy
Screw
PRAM PCB AssyCutter Driver PCB Assy
