6.5.13 Fan Motor
1
2
3
4
5
6
7
8
4. Remove the screws with a ratchet or stubby screwdriver, dis-
connect the connector and remove the adsorption fan assy.
5. Reverse the disassembly procedure for reassembly.

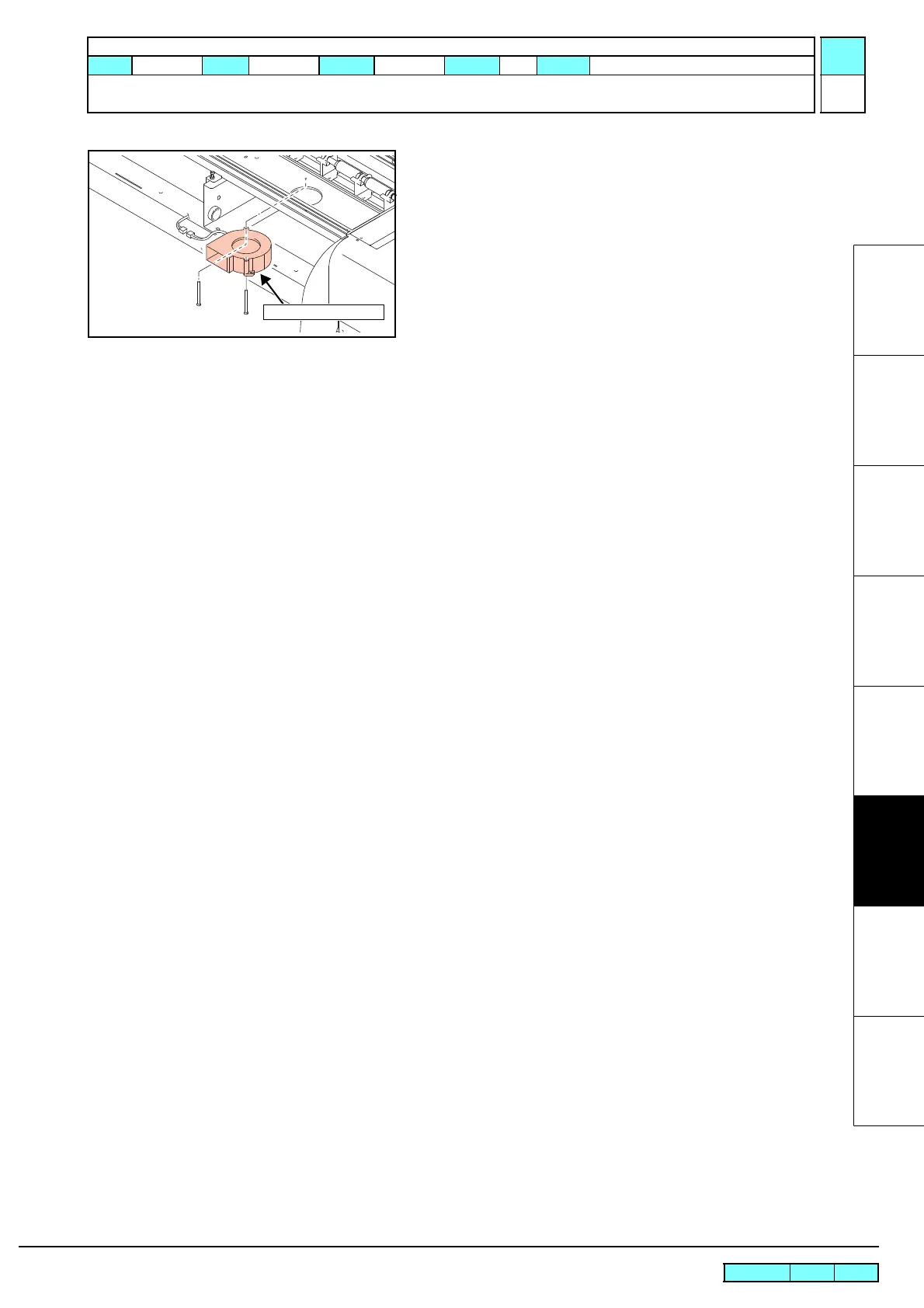

Adsorption Fan Assy
R.1.0
Maintenance Manual > Disassembly and Reassembly > Electrical Parts > Fan Motor
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
