MIMAKI CJV30 Series User Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
7.2.2 P.2
7.2.2 Media Attachment to the Platen
1
2
3
4
5
6
7
8

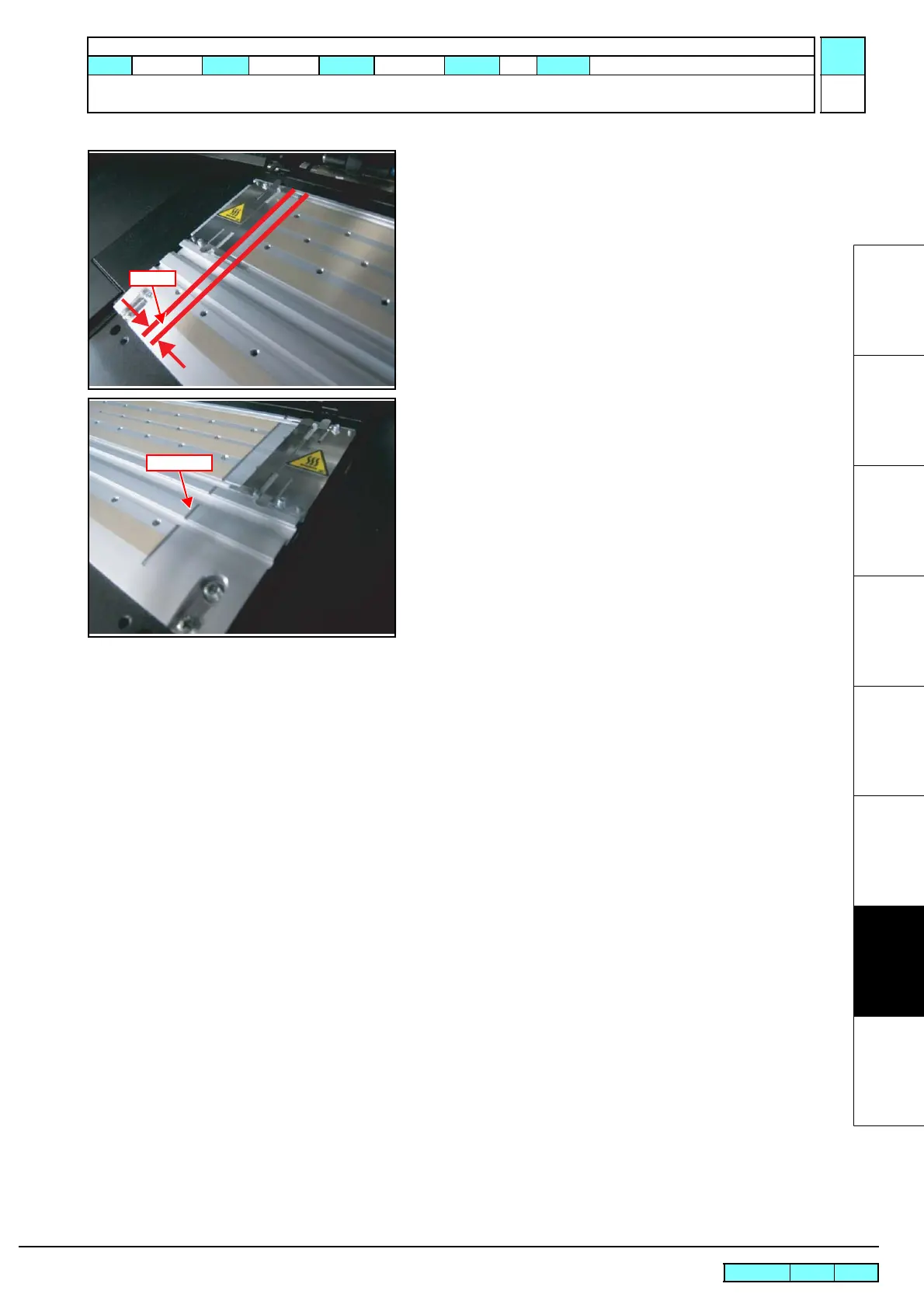

3. To tape the Niftron tape on the left edge of the platen, move the
left media retainer to the left end.
4. Tape the Niftron tape, and then cut it at the 5 mm right from the
media retainer placed on the left end.
5. To tape the Niftron tape on the right edge of the platen, move
the right media retainer to the right end.
6. Tape the Niftron tape, and then cut it along the left end of the
slit line.
5mm
Slit line
R.1.0
Maintenance Manual >Troubleshooting > Detailed Methods of Coping with the Malfunctions > Media Attachment to the
Model CJV30/TPC Issued 2008.12.06 Revised F/W ver. 1.00 Remark
1.0
Rev.

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
