- 17 -
duct
hose band
binding band
binding bands

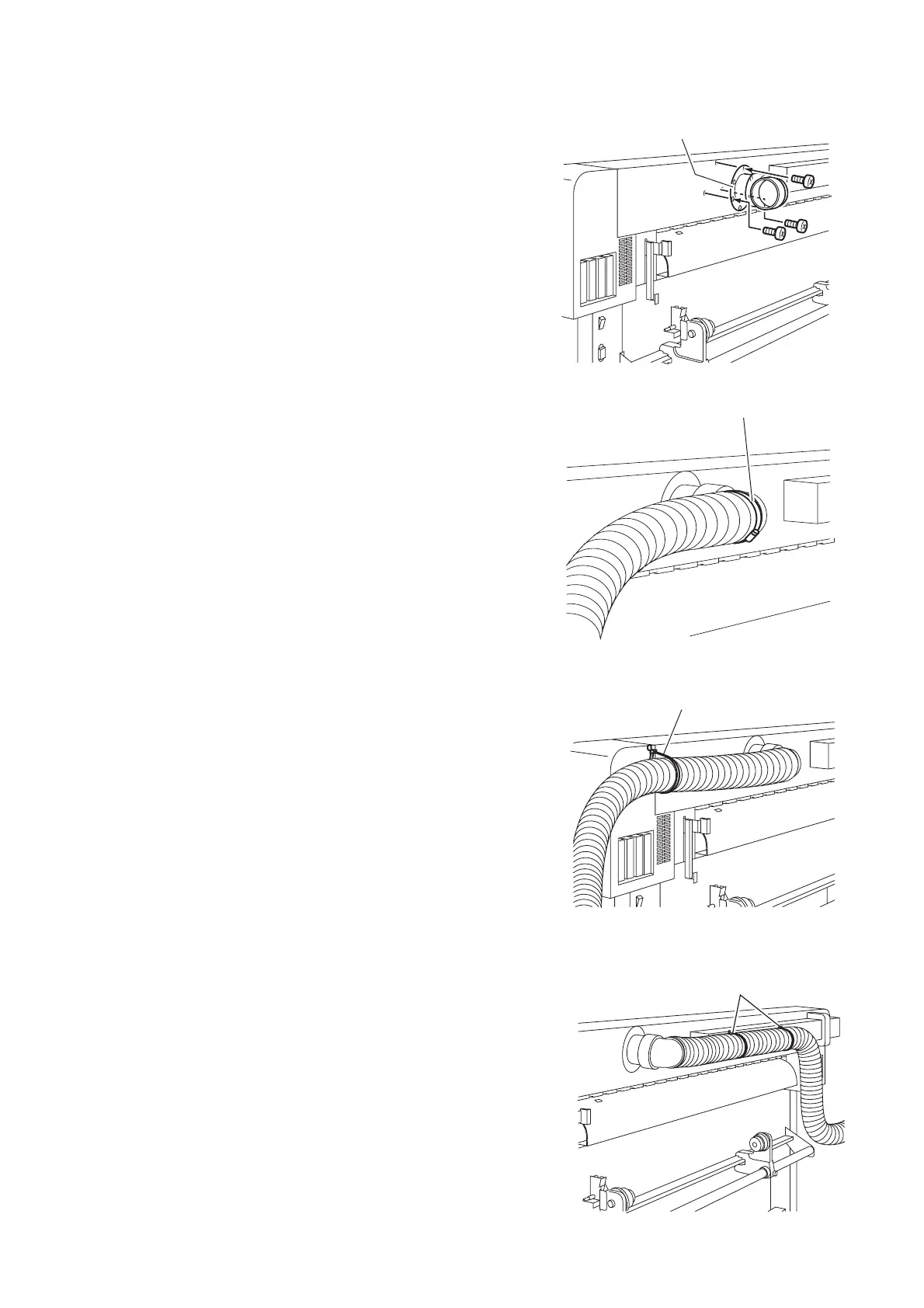

Assembling Rear Exhaust Duct
1. Attach the duct to the rear panel of the plotter using
three screws.
The duct can be attached either rightward or leftward depending on
the exhaust outlet ventilation.
2. Fix the exhaust hose using hose band.
Lead the opposite end of the hose outdoors.
3. Attach binding band for fixing the exhaust hose to
the rear panel of the plotter.
To discharge air to the right side of the plotter, attach one binding
band.
To discharge air to the left side of the plotter, attach two binding
bands.
