MIMAKI JV3-160SP Setup Guide

- 24 -

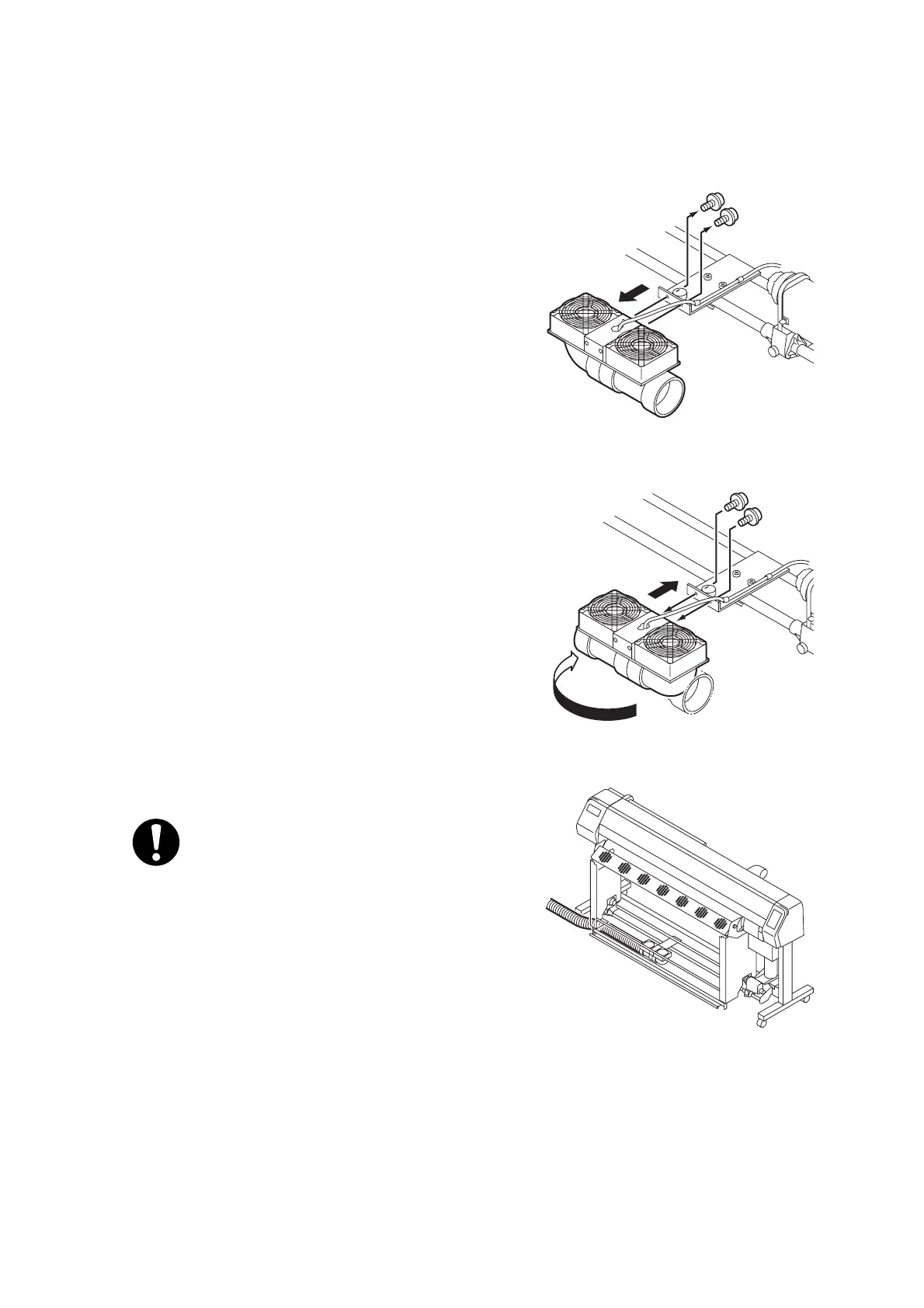

Leading the exhaust hose to the left
When leading the exhaust hose to the left, change the direction of the exhaust fan.
1. Remove the two screws.
2. Change the direction of the exhaust fan so that the
exhaust hose will come to the left side.
Fix the exhaust fan with two screws.
3. Lead the exhaust hose under the exhaust cover L.
• Lead the exhaust hose outdoors or connect
it to the optional deodorizing device.
