AS3000™ Ser
vice Manual
0070-10-0683
4 - 7
Replacement Parts and Acce
ssories

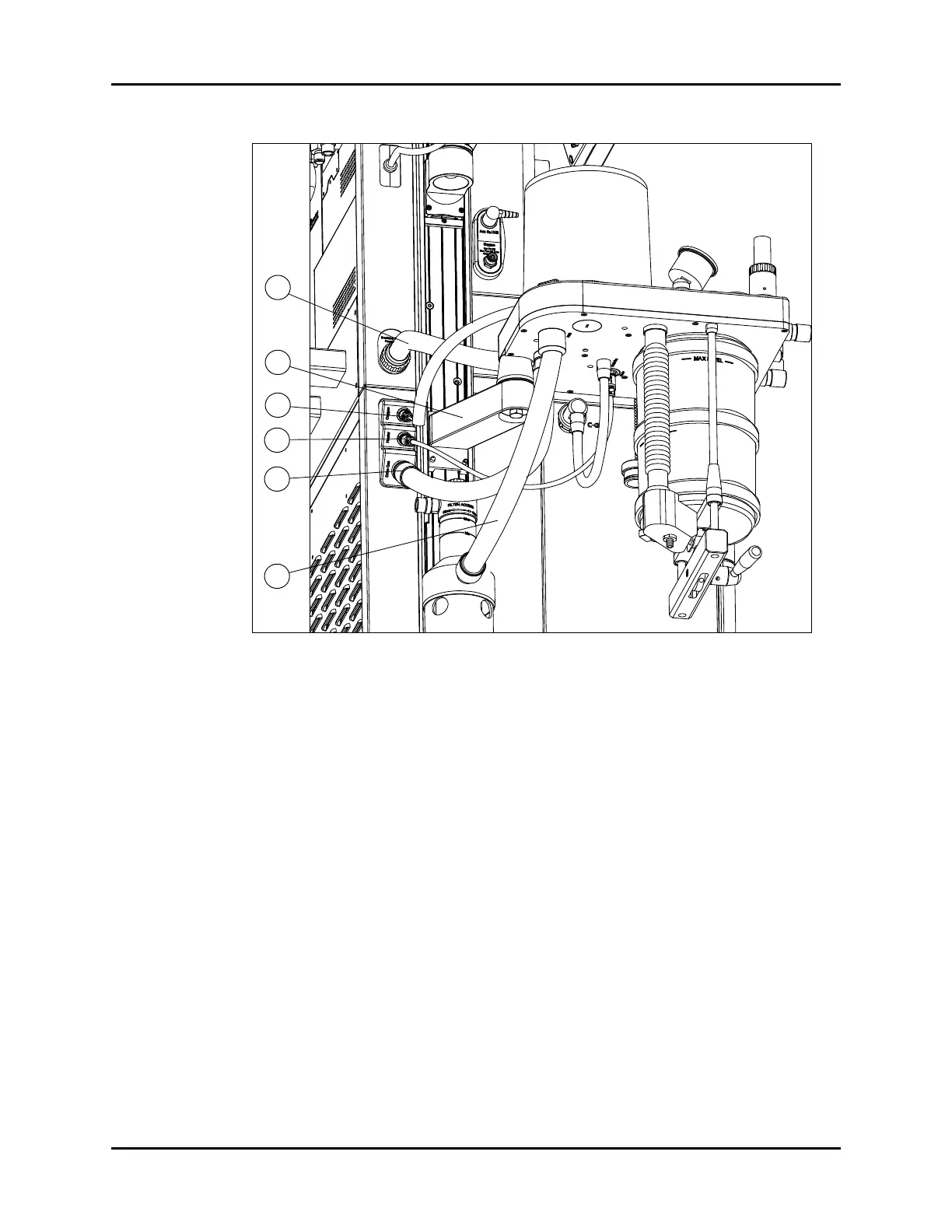

Isometric Drawings
FIGURE 4-4
Breathing System Bottom View
38
39
40
41
42
43
103
105
Table of Contents
Default Chapter
4
Table of Contents
4
Foreword
10
Warnings, Cautions and Notes
10
Warnings
10
Cautions
11
Notes
12
Theory of Operation
14
Introduction
14
Microprocessor-Controlled Ventilator
15
Components
16
Front View
16
Side View
18
Rear View
20
Other Components (Not Identified in Graphics)
21
Breathing System
22
The Ventilator Unit
22
Adjustable Alarms
23
Compliance Compensation
23
Electrical Supply
24
Electrical Components
24
Ventilator Control and Drive
25
BDU (Basic Digital Unit)
25
Amplifier Board
27
Drive Gas Pressure Sensor Board
32
PAW Pressure Sensor Board
33
Breathing System Heater
34
Sensor Board
36
Power Management
39
Battery
41
Power Supply
41
Anesthesia System Components
42
Auxiliary Outlets
42
Absorber Heater Wire Board
42
Work Light Board
42
Ventilator UI
44
Keyboard Board
44
Display
47
Communication Interface / RS232 Isolate Board
48
Fuses
48
Ventilator Pneumatic - O Drive Gas
49
Ventilator Pneumatic Drive
49
Drive Pressure-High Pressure Regulator
49
Gas Box Assembly
49
Tube Color Coding
49
The Breathing System
50
CMV Mode, Inspiration
50
CMV Mode, Expiration
50
Manual Mode, Inspiration
51
Manual Mode, Expiration
51
Pneumatic PEEP
52
Ventilator in Standby
52
Breathing System Components
52
Ventilation Bellows System
52
Manual Breathing Bag
52
CO 2 Absorber
52
Inspiratory and Expiratory Valves
52
APL (Airway Pressure Limiting) Valve
52
Installation Guide
54
Delivery of the New Anesthesia Machine
54
Assembly
55
Unpacking
55
Breathing System and Breathing System Accessories
55
Attaching the Mounting Arms and User Interface
56
Breathing System Connections
56
Anesthesia System Connections
56
Tank Wrench and Pre-Operation Checklist
57
Patient Suction Regulator and Arm
57
Suction Canister Bracket
57
Utility Tray, Monitor Mounting Arm with Utility Hook(S)
57
Vaporizers
57
High Pressure Hoses
58
Emergency Cylinder(S)
58
Breathing Circuit, CO Absorbent, and Liquid Vaporizer Agent
58
Monitoring Products - Mounting and Electrical Connection
59
Agent Monitor Waste Gas Scavenging
59
Oxygen Sensor Calibration
59
Installation Checkout Procedure
61
Repair Information
80
Introduction
80
Warnings and Cautions
81
Warnings
81
Cautions
81
Troubleshooting Guidelines
81
Special Tools Required
82
Troubleshooting Chart
83
Common Symptoms and Corrective Actions for Field Service Technicians
83
Leak Troubleshooting
90
Test Pneumatics
91
Leak Test - Manual Ventilation Test
91
Safety Valve Test
92
Leak Test - Automatic Ventilation Test
93
Compliance Test
94
Pneumatic Hose and Wiring Diagrams
95
Pneumatic Hose Labeling
95
Sampling Pipeline Module Interface Labeling
96
Electrical Cable Labeling
97
Replacement Parts and Accessories
98
Introduction
98
Available Replacement Parts and Sub-Assemblies
98
Exchange Program
98
Replacement Parts Pricing Information
98
Ordering Information
99
Isometric Drawings
100
Chassis
100
Chassis Parts List
102
Breathing System
103
Breathing System Parts List
108
Electric Box
109
Electric Box Parts List
109
Gas Circuit Box
110
Gas Circuit Box Parts List
110
User Interface
111
User Interface Parts List
112
Flowmeter
113
Flowmeter Parts List
113
Calibration
114
Introduction
114
Calibration Warnings, Precautions, and Notes
115
Warnings
115
Cautions
115
Notes
116
General Guidelines
117
Test Equipment and Special Tools Required
117
Calibration Procedures
117
Oxygen Sensor Calibration
117
Proportional Valve Regulator Calibration
119
Flow Sensor Calibration
120
Flow Valve Calibration
122
Paw Sensor
123
PEEP Valve
124
Flow Meter
125
Leakage Detection
126
Startup Leakage Detection
126
APL Valve Leakage Detection
126
Safety Valve Leakage Detection
126
Breathing System Leakage Detection
126
Compliance Detection
126
Periodic Maintenance
128
Maintenance Schedule
128
Periodic Maintenance Consumable Parts Kits
128
Periodic Maintenance Schedule of Service Activities
129
Visual Inspection Checklist
129
Replacement of Consumable Parts
130
Check Valve Cleaning
131
Tools and Materials
131
Cleaning Procedure
132
Battery Maintenance and Replacement
140
Battery Maintenance
140
Battery Replacement
140
Functional Tests
140
Test Equipment and Special Tools Required
140
Pressure Regulator Checks
141
Proportional Valve Regulator
141
Gas Delivery System Tests
141
O 2 Flush Verification
141
O 2 :N 2 O Ratio System
142
Start-Up Tests
142
System Self Test
142
Leak/Safety Valve Test
142
Leak Test
144
Compliance Test
147
Manual Leak Test
148
Oxygen Sensor Calibration
149
Pneumatic Leak Tests
151
N 2 O Cylinder Leak Test
151
O 2 Cylinder Leak Test
151
AIR Cylinder Leak Test
151
Line Supply Check Valves Test
151
N 2 O Line Pressure Leak Test
152
O 2 Line Pressure Leak Test
152
AIR Line Pressure Leak Test
152
Cylinder Supply Check Valves Test
152
Breathing System Checks
153
Waste Gas Scavenger Test (if Available)
153
Internal Gas Connections Test
153
Drive Gas Pressure Loss Alarm, N 2 O Cutoff Test
153
Performance Verification
154
Standby Mode Ventilation Test
154
Manual Mode Ventilation Test
154
APNEA Alarm Test
154
Alarm MUTE Test
154
CMV Adult Ventilation Mode Test
155
CMV Child Ventilation Mode Test
156
Airway Disconnect Alarm Test
156
PCV Adult Ventilation Mode Test
157
Pressure Support (PS) Ventilation Mode Test
158
Alarms and Failsafe Functions
159
Set up
159
Low Fio 2 Alarm Test
159
High Fio 2 Alarm Test
160
Peak Pressure Alarms Test
160
Minute Volume Alarm Test
161
Miscellaneous Tests
161
Test the Line Voltage Alarm
161
Wheel Brakes Test
161
Work Light Test
161
Auxiliary Flowmeter
162
Patient Suction Regulator (if Available)
162
Vaporizers
162
Vaporizer Interlock Test
162
Vaporizer Accuracy Test
163
Vaporizer Leak Test
163
Dräger Vapor 2000 Operating Instructions ARRB-F001
164
Electrical Tests
165
Convenience AC Outlets Test
165
Electrical Safety Inspection Test
165
AS3000 Installation Checklist
165
Cleaning
166
Cleaning and Disinfecting the AS3000
166
Cleaning and Sterilizing the Breathing System and Components
166
Preoperative Checklist
166
Phone Numbers and How to Get Assistance
174
Warranty
176
Warranty Statements
176
Disclaimers
177
Product Improvements
177
Manufacturer's Responsibility
177
