2 - 2 0070-10-0683 AS3000™ Service Manual
2.2 Assembly
NOTE: The AS3000 Breathing System Block is matched to the
AS3000 it is attached to by calibration and installation.
After removing the Breathing System Block from the
Mounting Arm of the AS3000, assure that the Breathing
System Block is returned to the same AS3000 that it came
from originally.
2.2.1 Unpacking
1. Inspect the two boxes for any damage, check the tip watches, and report any damage
or sign of tipping to the dispatcher.
2. Ensure the serial numbers on both carton labels match prior to assembling the system.
3. Remove the shipping straps and caps from the 2 boxes.
4. Remove the foam from inside the top of the box.
5. Remove the Corrugated box from around AS3000.
6. Remove the bag and shrink wrap from around AS3000.
7. Remove the foam from AS3000 casters.
2.2.2 Breathing System and Breathing System Accessories

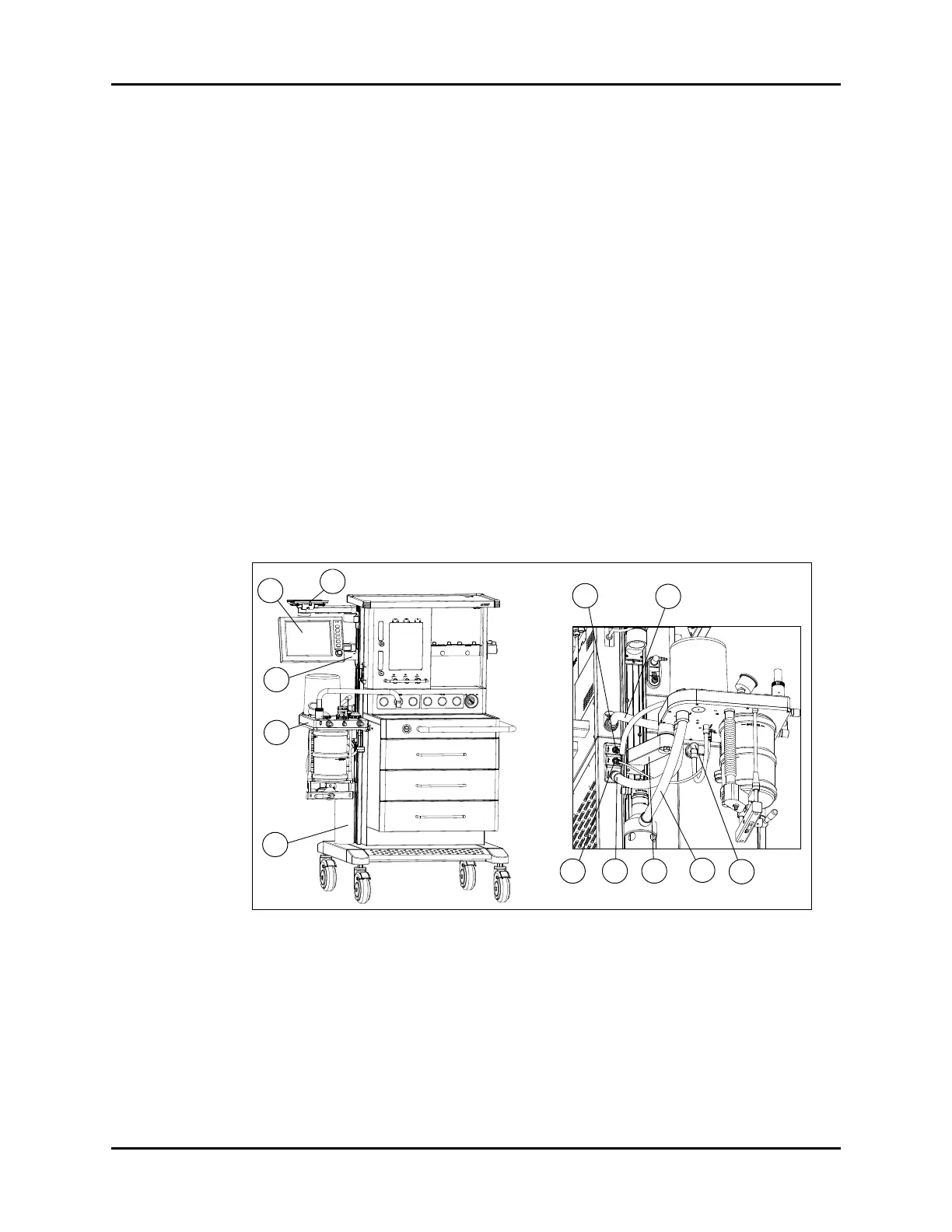

FIGURE 2-1 The AS3000 and accessories
1. AGSS 2. Breathing System
3. User Interface Mounting Arm 4. User Interface
5. Patient Monitor Mounting Arm 6. O
2
Cable
7. Pneumatic Hose Assembly 8. Heater Cable
9. Drive Gas 10. Breathing System Mounting Arm
11. AGSS Transfer Hose 12. CGO Port
1
2
4
5
3
12
11
9
8
10
7
6
