AS3000™ Service Manual 0070-10-0683 1 - 3
Theory of Operation Components
1.3 Components
1.3.1 Front View

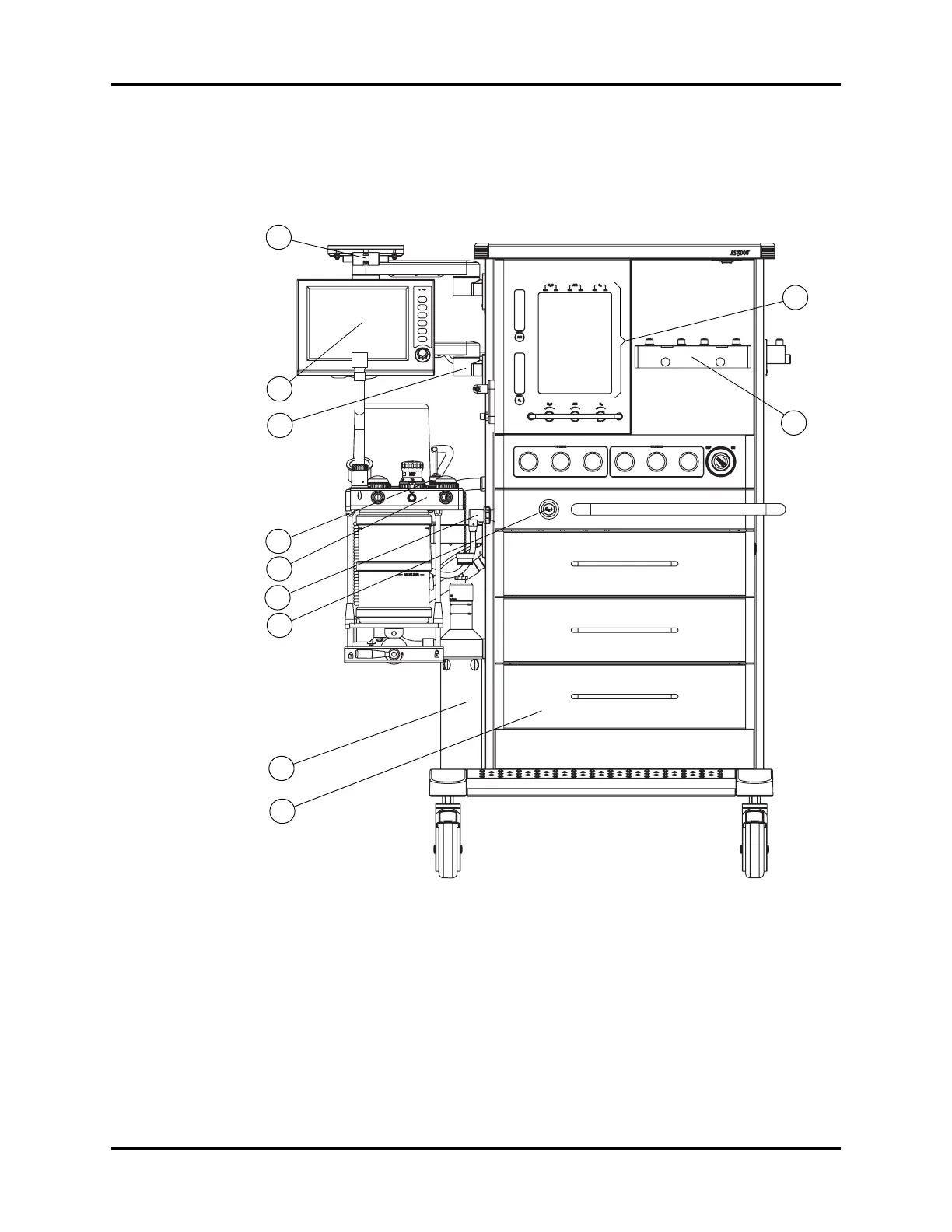

FIGURE 1-2 AS3000 Front View
1. Monitor Arm
The Monitor Arm provides support for a bedside monitor. It can easily rotate for more
convenient viewing.
2. User Interface
The display of the user Interface provides waveforms, numeric data and menu tabs. The keys
and Navigator Knob enable the user to power up the system, silence alarms, access menu
tabs, and switch between manual and mechanic ventilation.
4
5
6
7
8
9
2
1
10
11
3
