AS3000™ Service Manual 0070-10-0683 6 - 7
Periodic Maintenance Check Valve Cleaning
3. Remove Breathing System parts:
1. Remove the following parts from the Breathing System:
•APL Valve
• Breathing Circuit
•Manual Bag
•Bag Arm
• Bellows Cover
• Airway Pressure (PAW) Gauge
• Bellows
• Bellows Cover Base Gasket
• O2 Sensor Assembly
• Inspiratory Check Valve Assy
•Drive Gas Tube
•CGO Hose
• Heater Cable
•Pneumatc Hose
• Scavenger Hose
• Bellows Support Cage (if available)

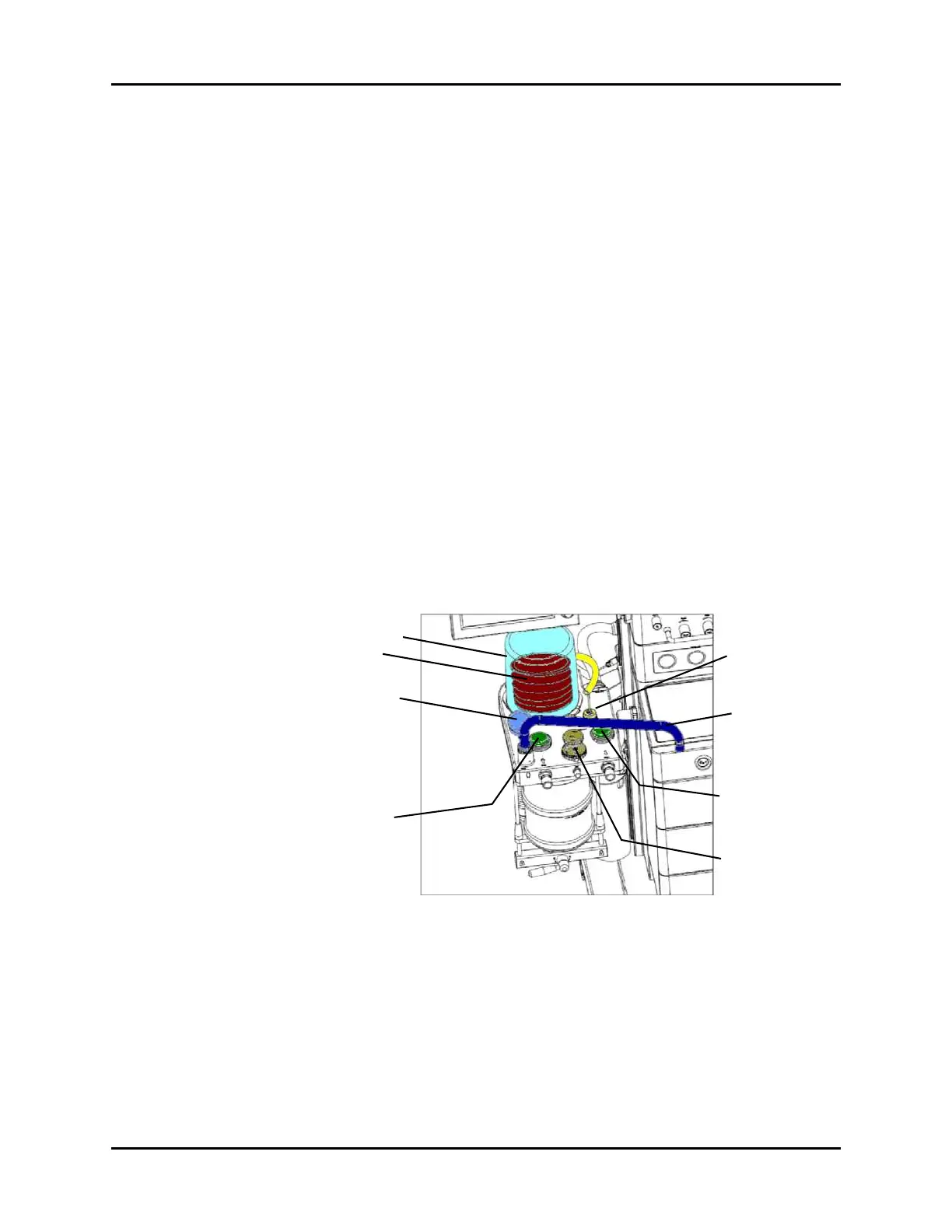

FIGURE 6-4 Breathing System
Bellows Cover
Expiratory
Check Valve,
Valve Holder,
Cover, and Nut
O2 Sensor
Assembly
APL Valve
Bellows
PAW Gauge
Bag Arm
Inspiratory
Check Valve,
Valve Holder,
Cover, and Nut
To Next Page
