Mindray DP-50 User Manual

Probes and Biopsy 12-21
No.
Name
Description
<6> Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used
<7> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy needles
<8>
Specification of
guiding block (14G）
Matched with the corresponding biopsy needle (14G）
<9> Needle guide hole Used for installing the biopsy needle
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
transducer

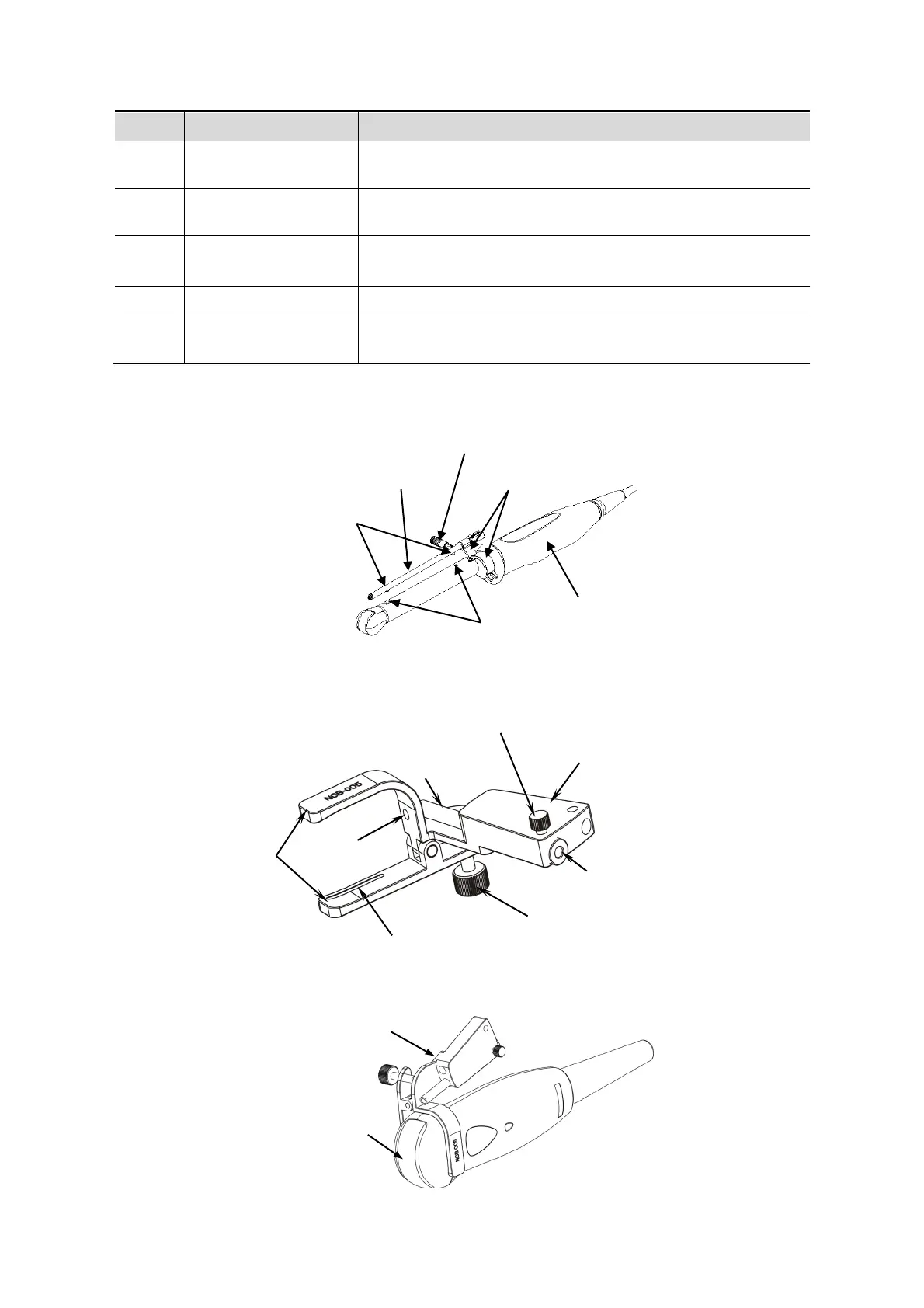

 NGB-004
 NGB-005
Locating groove
Transducer
Needle guide
Locating bulge
Locking nut
Retaining clamp
Clamp
Locating
groove
Needle guide rack
Clamping knob
of the needle guide
Needle guide hole
Grip knob
Locating pit
Needle guide
Needle-guided
bracket
Transducer

Mindray DP-50 Specifications

General

Transducer Ports	2
Cine Loop	Yes
Type	Portable Ultrasound System
Probes	Convex, Linear
Connectivity	USB, DICOM
Power Supply	100-240V~ 50/60Hz
Applications	Obstetrics, Gynecology, Urology, Cardiology
