Mindray DP-50 User Manual

12-22 Probes and Biopsy
 NGB-007
 Metal:
No.
Name
Description

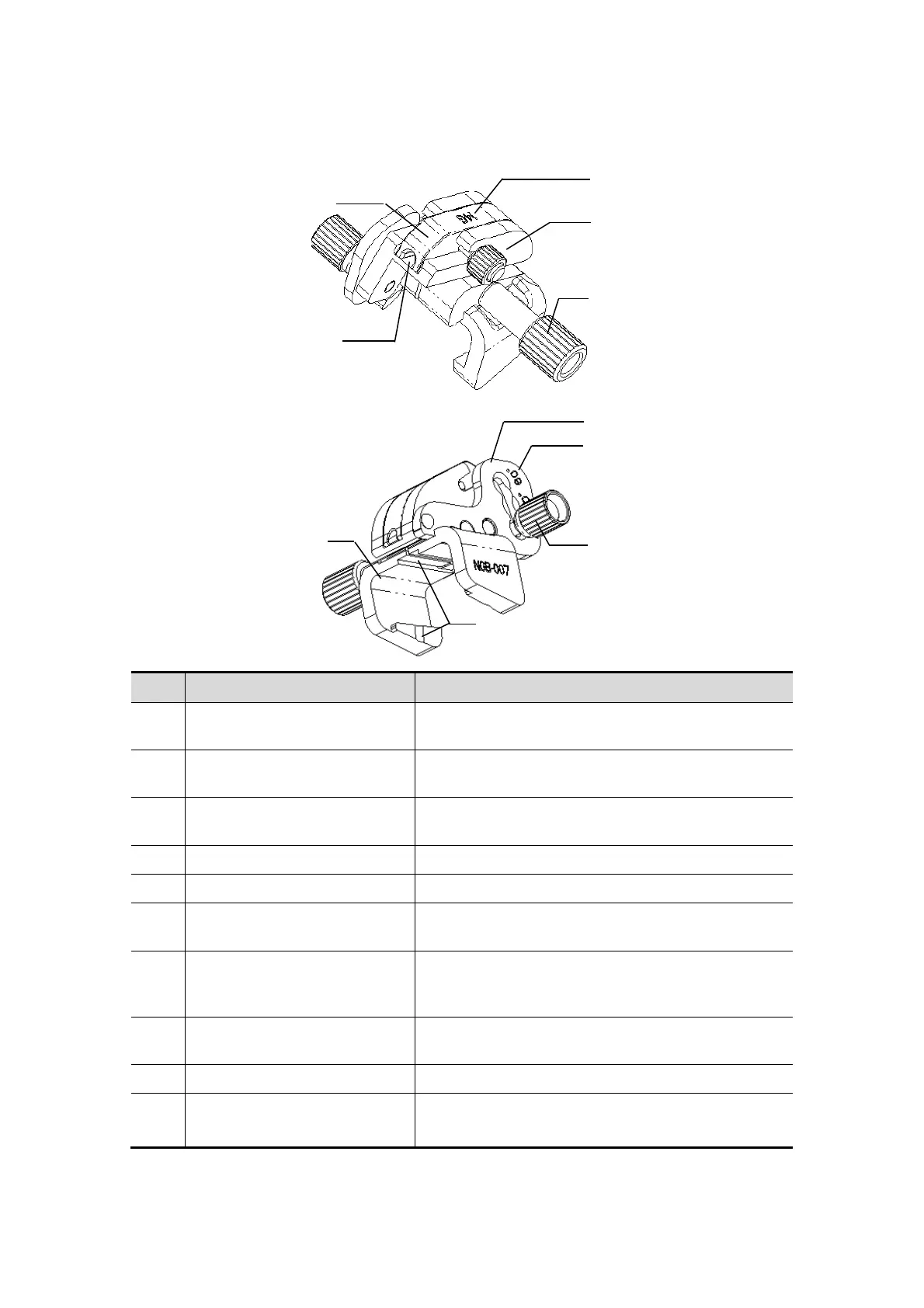

<1>
Support of needle-guided
bracket
Used for installing the needle-guided bracket on
the transducer
<2>
Groove and tab of the
needle-guided bracket
Respectively matched with the tab and groove of
the transducer
<3> Angle adjusting base
There are 3 types of angles available to be
adjusted
<4>
Angle shift sign(40°,50°,60°)
Matched with the biopsy angle(40°,50°,60°)
<5>
Angle pinch nut
Used for fixing the angle lock at a chosen angle
<6> Angle block
Used for determining the angle of the biopsy;
different specifications of blocks can be used
<7> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different
biopsy needles
<8>
Specification of guiding
block(14G)
Matched with the corresponding biopsy
needle(14G)
<9> Needle guide hole Used for installing the biopsy needle
<10>
Pinch nut of needle-guided
bracket
Used for locking the
needle-guided bracket and the transducer
 Plastic
<2>
<4>
<3>
<5>
<1>
<6>
<9>
<7>
<10>
<8>

Mindray DP-50 Specifications

General

Transducer Ports	2
Cine Loop	Yes
Type	Portable Ultrasound System
Probes	Convex, Linear
Connectivity	USB, DICOM
Power Supply	100-240V~ 50/60Hz
Applications	Obstetrics, Gynecology, Urology, Cardiology
