17 Probes and Biopsy
Operator’s Manual 17 - 29
• Confirm that the needle-guided bracket is free of damage, deformation, stripping, malfunction,
loose, or missing parts.
• Confirm that the needle-guided bracket is securely mounted in the correct position.
• Select the proper needle according to the specification above, and adjust the needle shift to the
same specification of the selected needle.

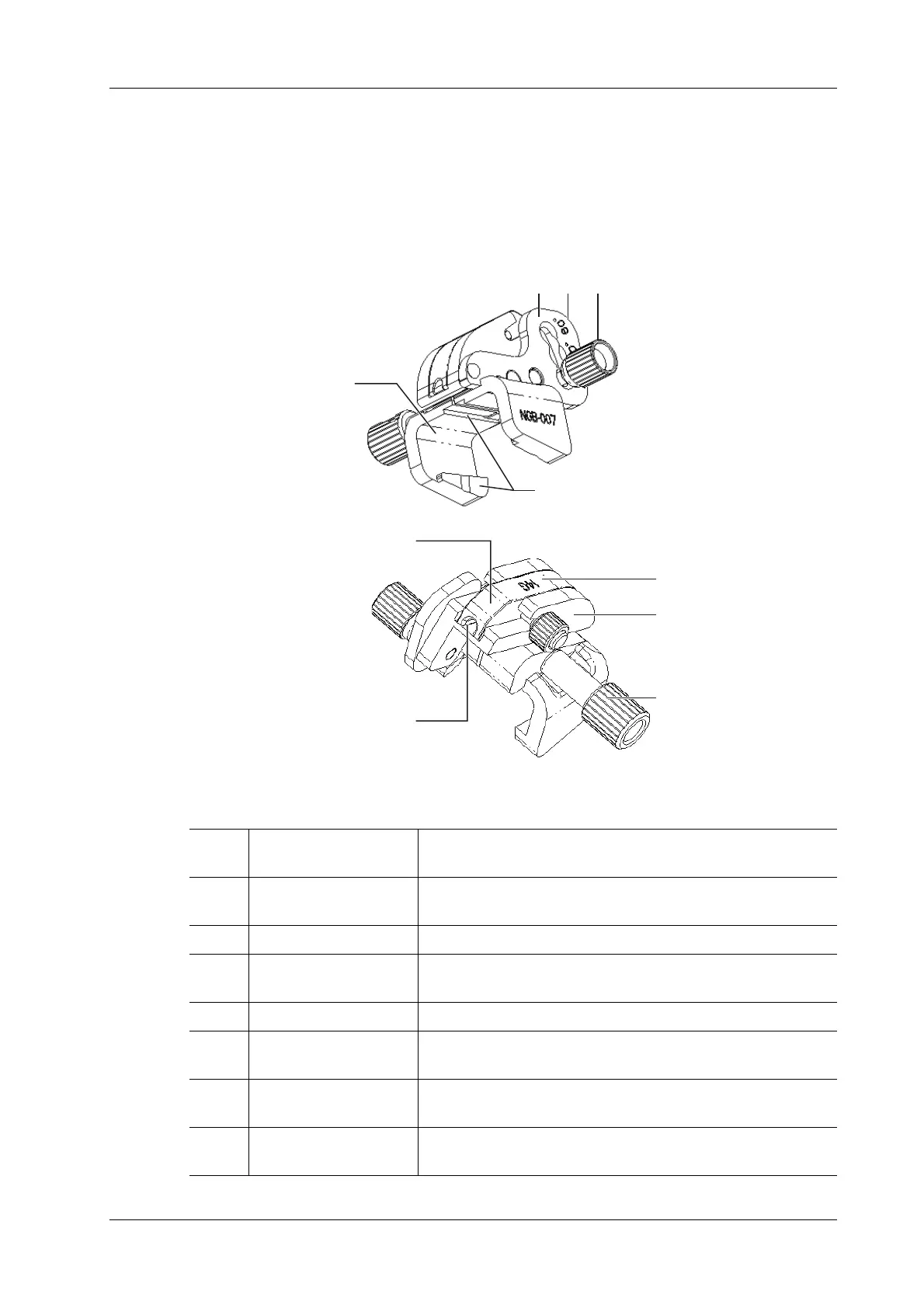

NGB-007 (Metal)
1 Support of needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
2 Groove and tab of the
needle-guided bracket
Respectively matched with the tab and groove of the probe.
3 Angle adjusting base There are 3 types of angles available to be adjusted.
4 Angle shift sign (40°,
50°, 60°)
Matched with the biopsy angle (40°, 50°, and 60°).
5 Angle pinch nut Used for fixing the angle lock at a chosen angle.
6 Angle block Used for determining the angle of the biopsy; different
specifications of blocks can be used.
7 Guiding block Used for installing biopsy needle; there are five specifications
of guiding blocks for different biopsy needles.
8 Specification of guiding
block (14G)
Matched with the corresponding biopsy needle (14G).
<1>
<2>
<8>
<7>
<9>
<6>
<10>
<3> <4> <5>
