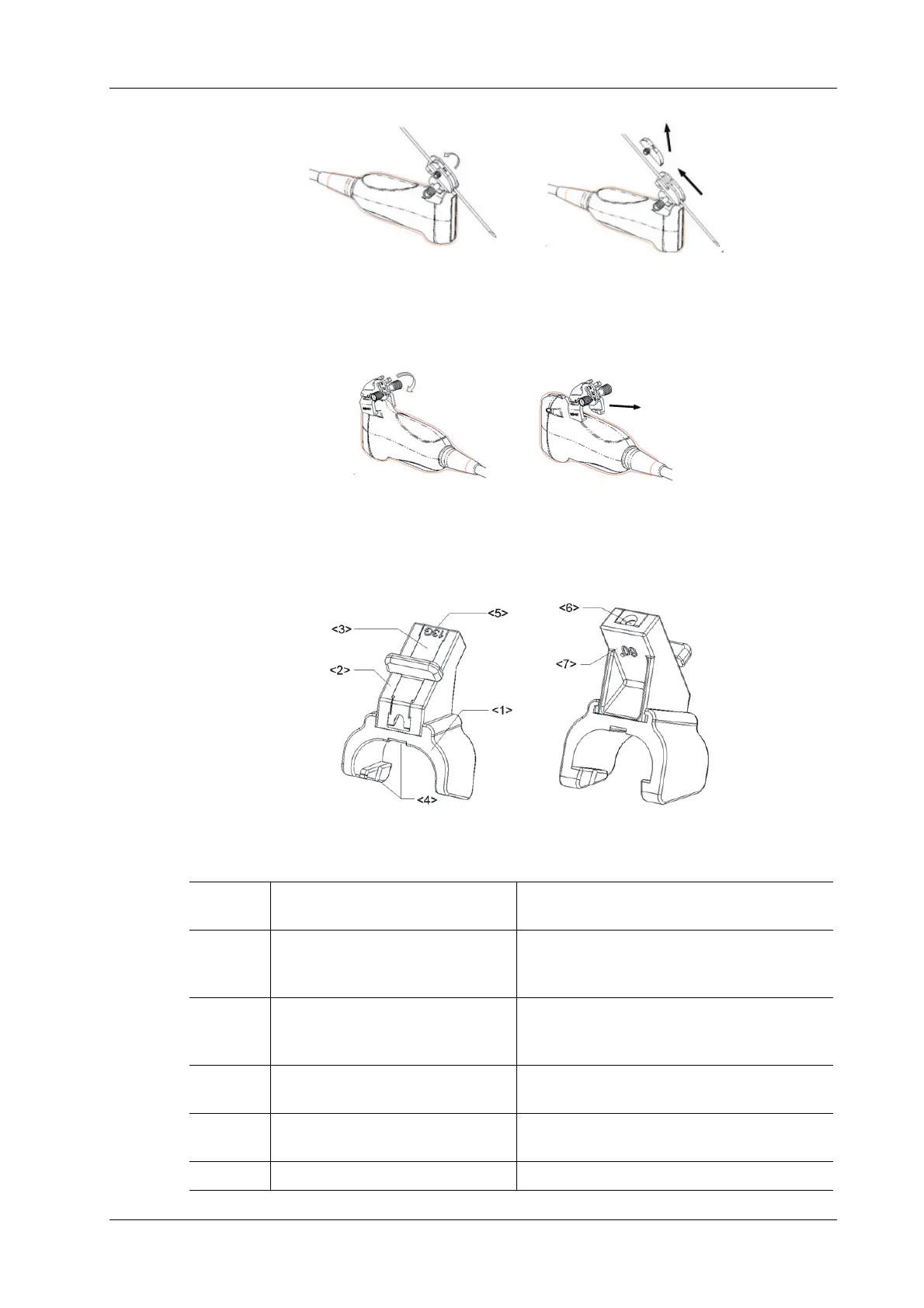

b. Separate the residual part of the needle-guide bracket and the transducer from the needle.
c. Screw the pinch nut of the bracket, and remove the needle-guided bracket from the
transducer.
d. Separate the transducer and the needle-guided bracket.
NGB-007 (Plastic)
1 Support of needle-guided bracket Used for installing the needle-guided bracket
on the probe.
2 Angle block Used for determining the angle of the biopsy;
there are three specifications of blocks of
angle.
3 Guiding block Used for installing biopsy needle; there are five
specifications of guiding blocks for different
biopsy needles.
4 Groove and tab of the needle-
guided bracket
Respectively matches with the tab and groove
of the probe.
5 Specification of guiding block
(13G)
Matched with the corresponding biopsy needle
(13G).
6 Guiding hole of the biopsy needle Used for installing the biopsy needle.
