13-18 Probes and Biopsy
Name of Parts
This section describes the parts and corresponding functions of each needle-guided bracket.
NGB-001, NGB-002, and NGB-005 (Metal/needle un-detachable)

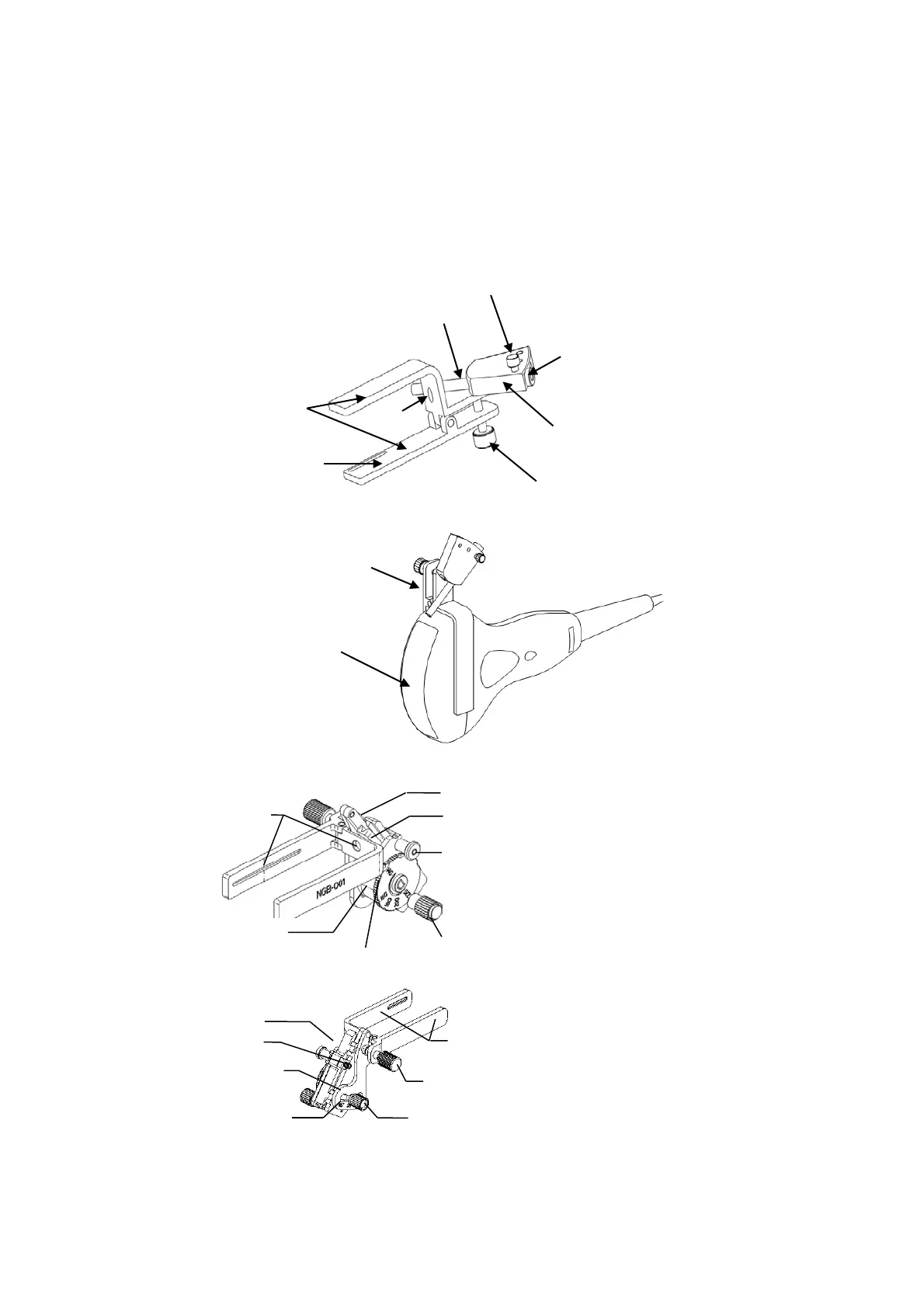

The structure of plastic needle-guided bracket NGB-001, NGB-002, and NGB-005 are
similar to each other. The following figure shows the structure with NGB-001 as an
example.
NGB-001 Metal-detachable
N
eedle fixing nut
A
ngle pinch nut
P
inch nut
C
lamp
V
-shaped cover
Angle adjusting base
Angle block
Groove
N
eedle type adjusting base
Needle type dial
scale
L
ock pin
G
uiding hole
V
-shaped guiding
block
A
ngle shift sign
Needle guide rack
Locating
groove
Clamp
Needle guide
Clamping knob of
the needle guide
Needle guide
hole
Grip knob
Locating pit
Transducer
Needle-guided
bracket
