System Preparation 3-5
3. Keep the probe in safety and care.
3.5 Connecting the Footswitch
Connect the footswitch to the main unit via a USB port.
Set the functions of the footswitch in the [Key Config] page. Refer to "12.1.6 Key Config" for
details.
3.6 Connecting/ Removing a USB Storage
Device
WARNING:
DO NOT detach an USB storage device directly; otherwise,
the ultrasound system or the USB device and/ or data
stored in the device may be damaged.
 When connecting a USB storage device to the ultrasound system, you can see the
symbol
in the lower right corner of the screen.
 To remove the USB storage device: Click
to open the [Remove USB Device] screen.
Select the device to be removed. Click [OK].
3.7 Graph / Text Printer
3.7.1.1 Connecting a Local Printer

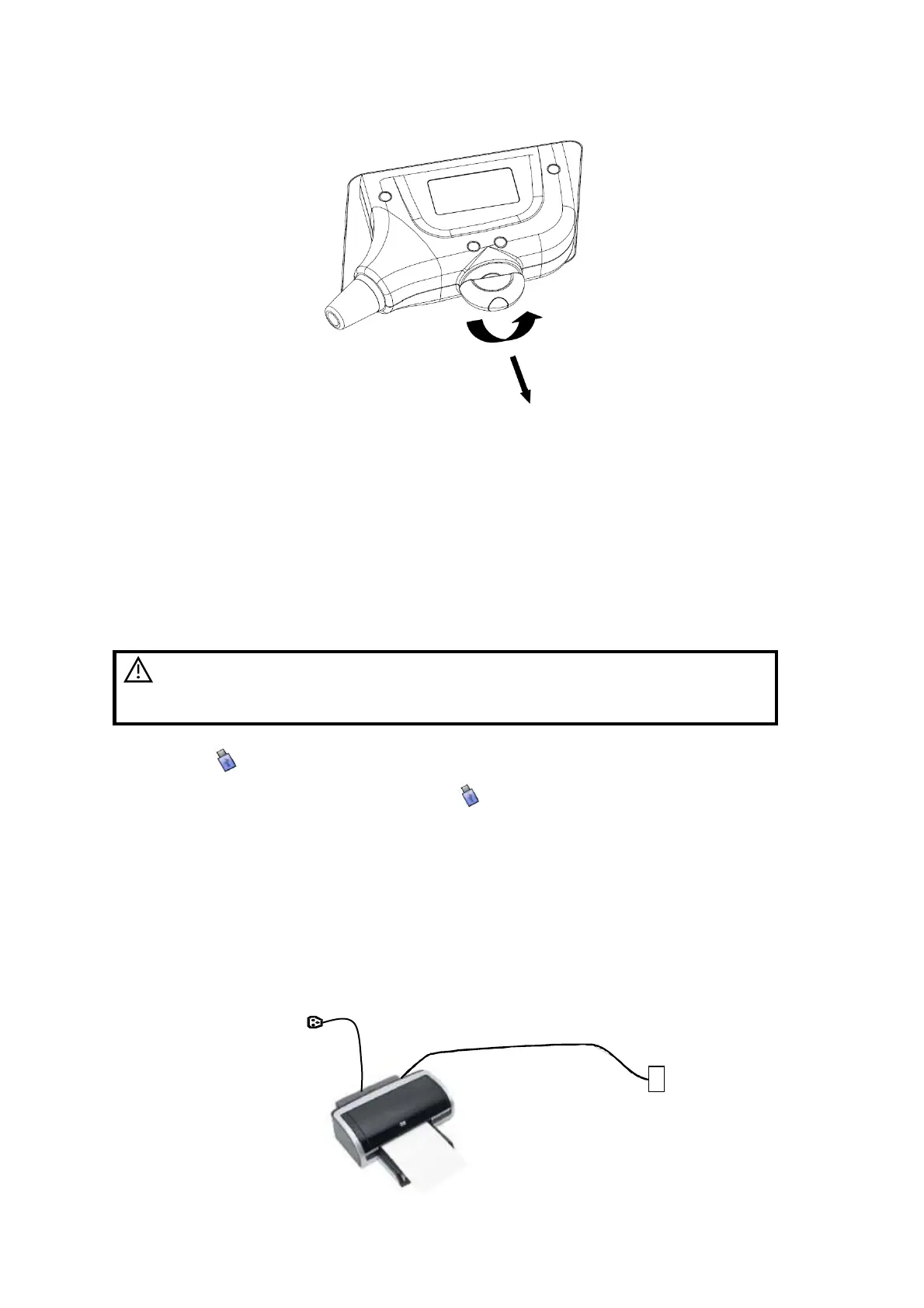

As shown in the figure below, a graph / text printer has a power cord and data cable. The
power cord shall be directly connected to a wall receptacle as required.
Data cord
USB port
Power cord
