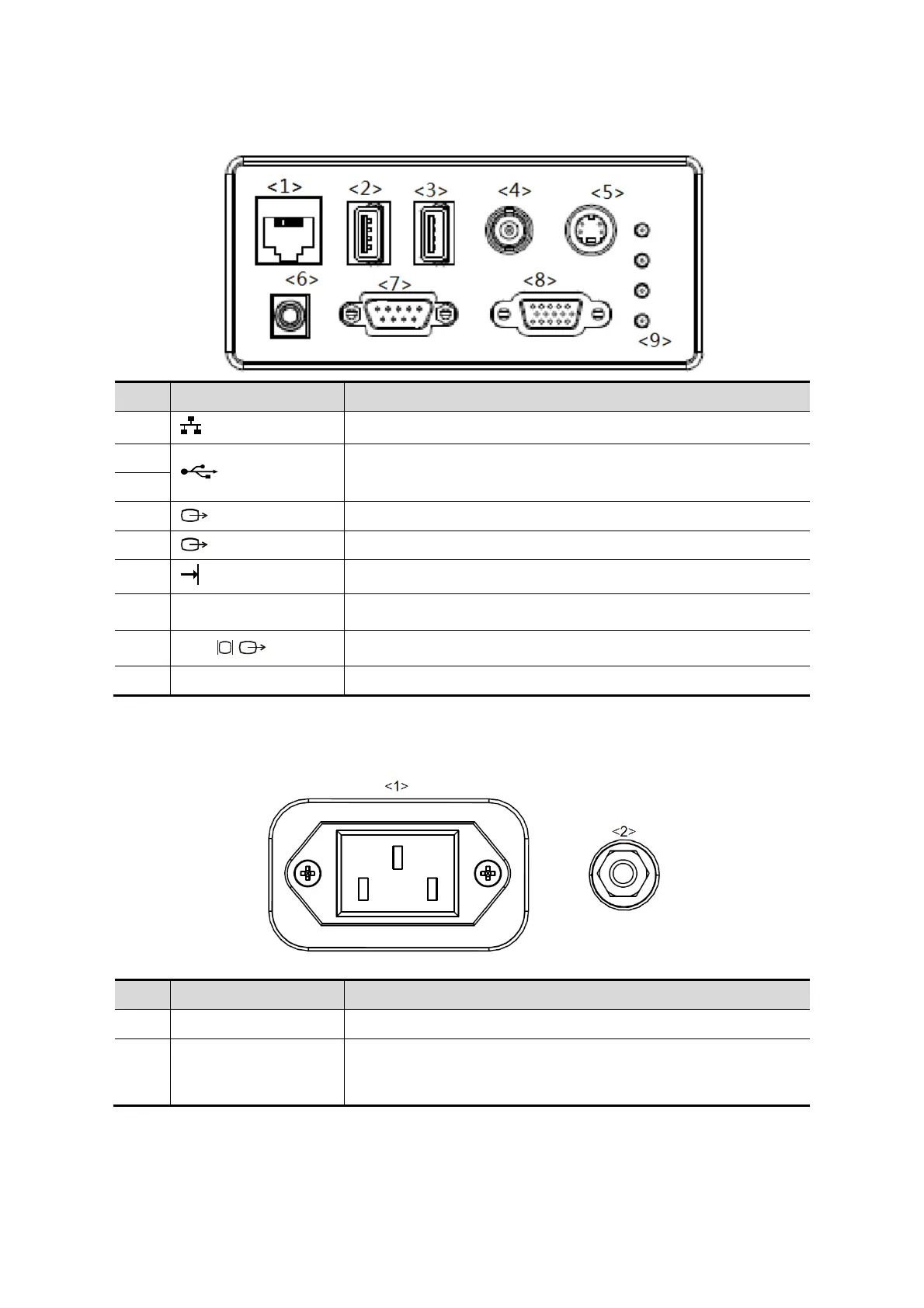

2.6.1 I/O Panel
No. Symbol Function
1
Network port
2
USB ports
3
4
Separate video output, connecting video printer or LCD
5 Composite video output
6 Remote control port
7
ECG
ECG port
8
VGA
VGA signal output
9 / Power indicator
2.6.2 Power Supply Panel
No. Name Function
1 Power inlet AC power inlet
2 Equipotential terminal
Used for equipotential connection, that balances the
protective earth potentials between
the system and other
electrical equipment.
