13-24 Probes and Biopsy
No. Name Description
<5>
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G).
<6>
Knob of fixing the
guiding block
Used for fixing the guiding block.
<7> Needle guide angle The needle guide angle of this needle-guided bracket.
<8>
Grooves of the
needle-guided
bracket
Matched with the tabs of the probe.

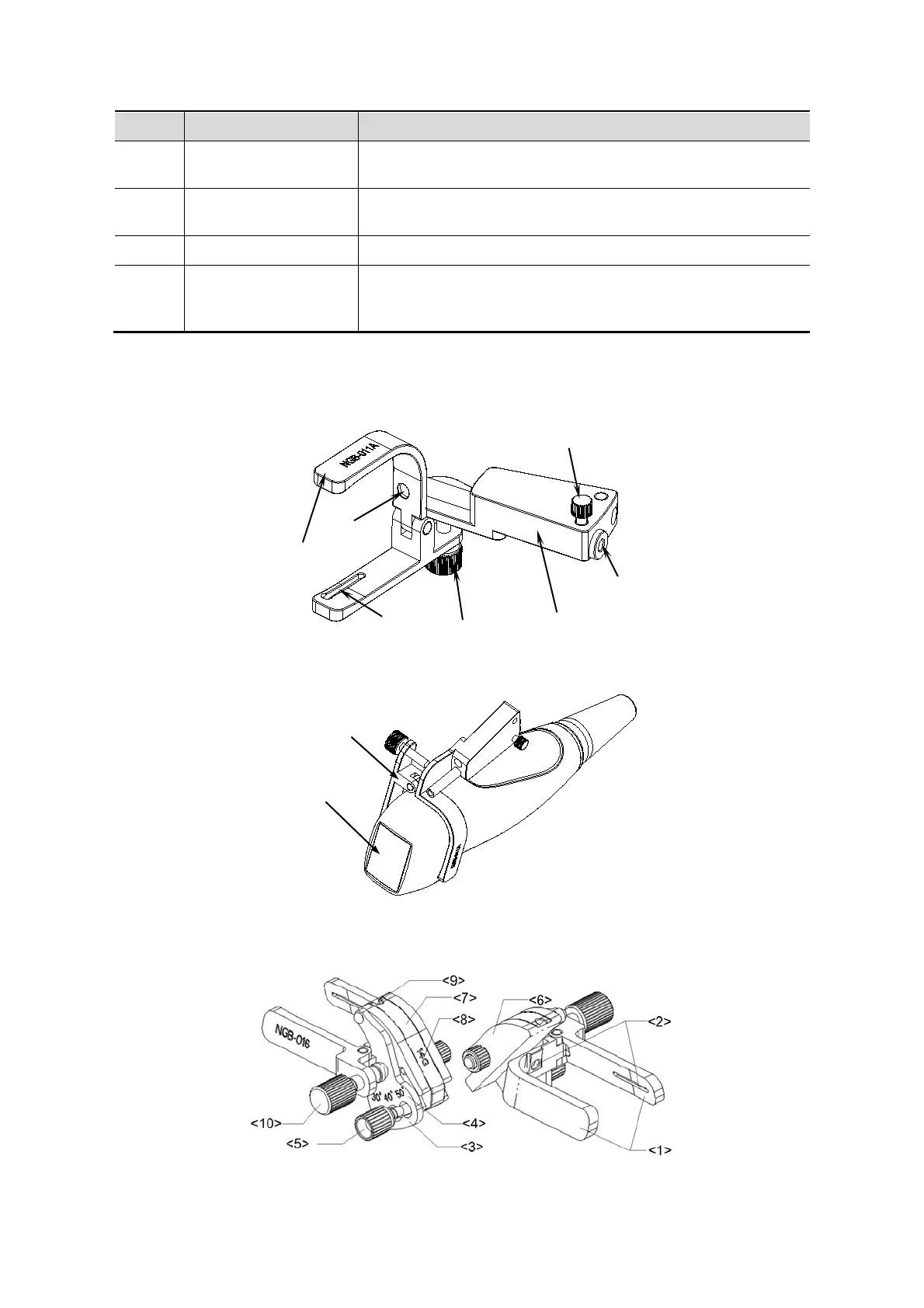

 NGB-011
 NGB-016
Needle
guide hole
Needle guide rack
Clamping knob of
the needle guide
Locating pit
Clamp
Grip knob
Locating
groove
Transducer
Needle-guided
bracket
