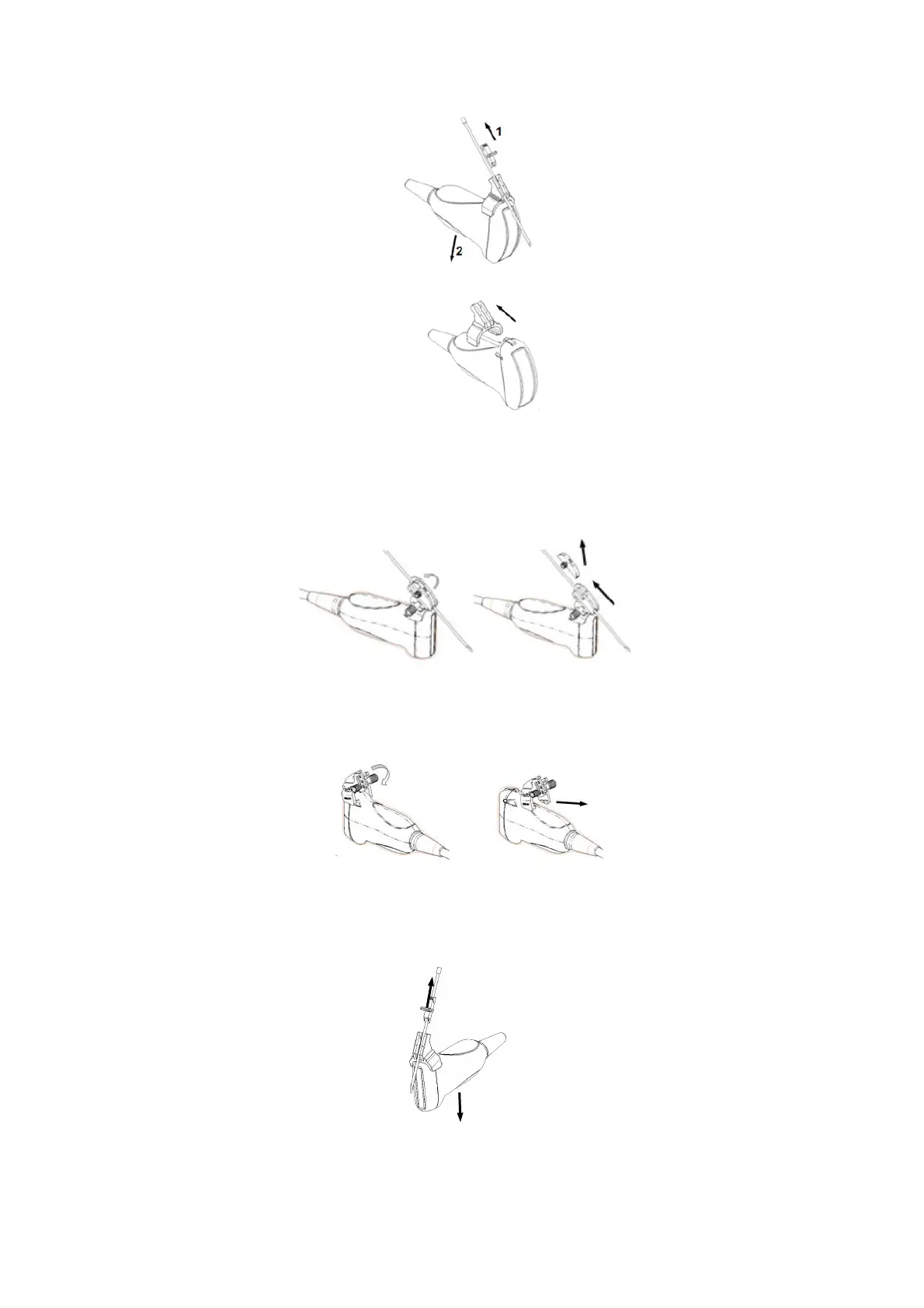

3. Remove the support of needle-guided bracket from the transducer.
 NGB-007
 Metal
1) Screw the nut of the guiding block and remove the guiding block slightly along
the direction of the needle’s tail.
2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from
the transducer.

Plastic
1) Remove the guiding block slightly along the direction of the needle’s tail.
2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
3) Remove the support of needle-guided bracket from the transducer.
