International Wide Bolt Pattern / Volvo / Late model PACCAR Risers
- Remove old seat from Truck and keep floor bolts.
- Disconnect air supply lines and electrical connections.
- Remove 4 bolts at bottom corners of suspension.

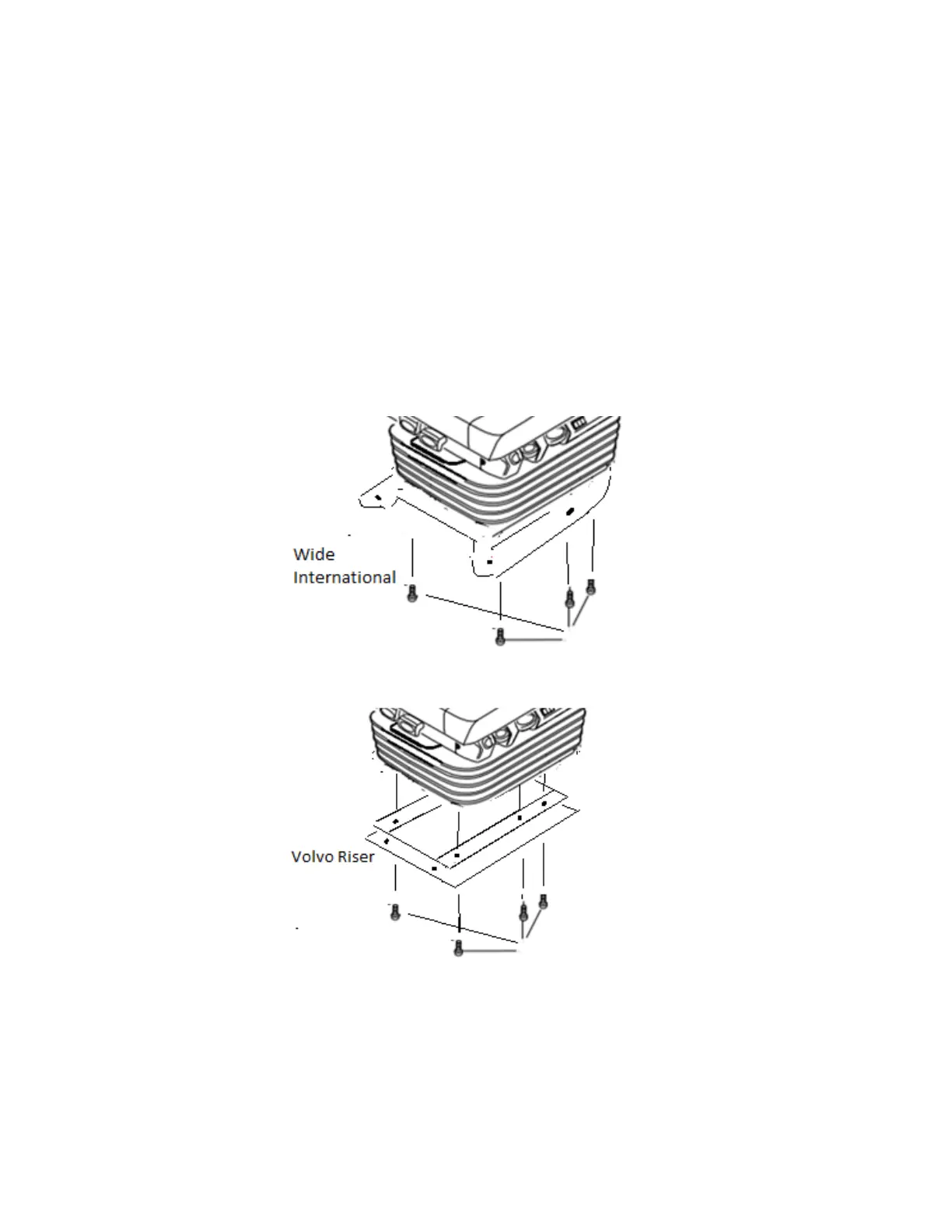

- Position riser to suspension by lining up top riser holes with threaded holes at bottom
corners of suspension. Install 6 bolts included with riser up into bottom corner holes of
suspension (Torque to 20 NM +/ - 5NM).
- Position seat into truck and use original floor bolts to secure to floor.
