32

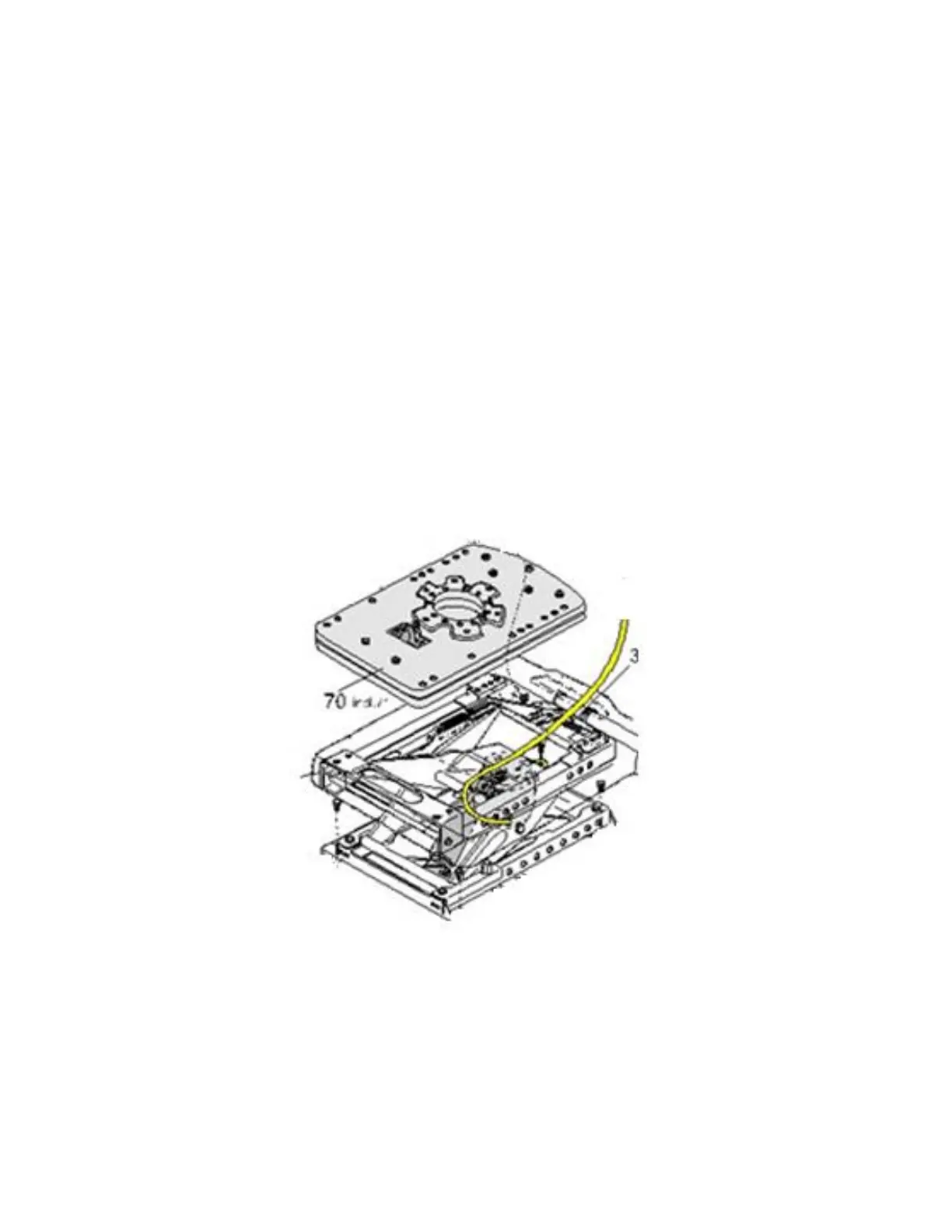

Swivel
- Remove pneumatic (2) and electrical lines.
- Remove seat from vehicle.
- Remove seat cushion (See page 9)
- Disconnect isolator cable, shock adjustment cable, height adjustment cable, and air
lines, and electric.
- Remove the four screws that hold the slides to the swivel ().
- Place upper part of seat in safe location.
- Pivot swivel to side and remove 4 screws () holding swivel to suspension.
