18

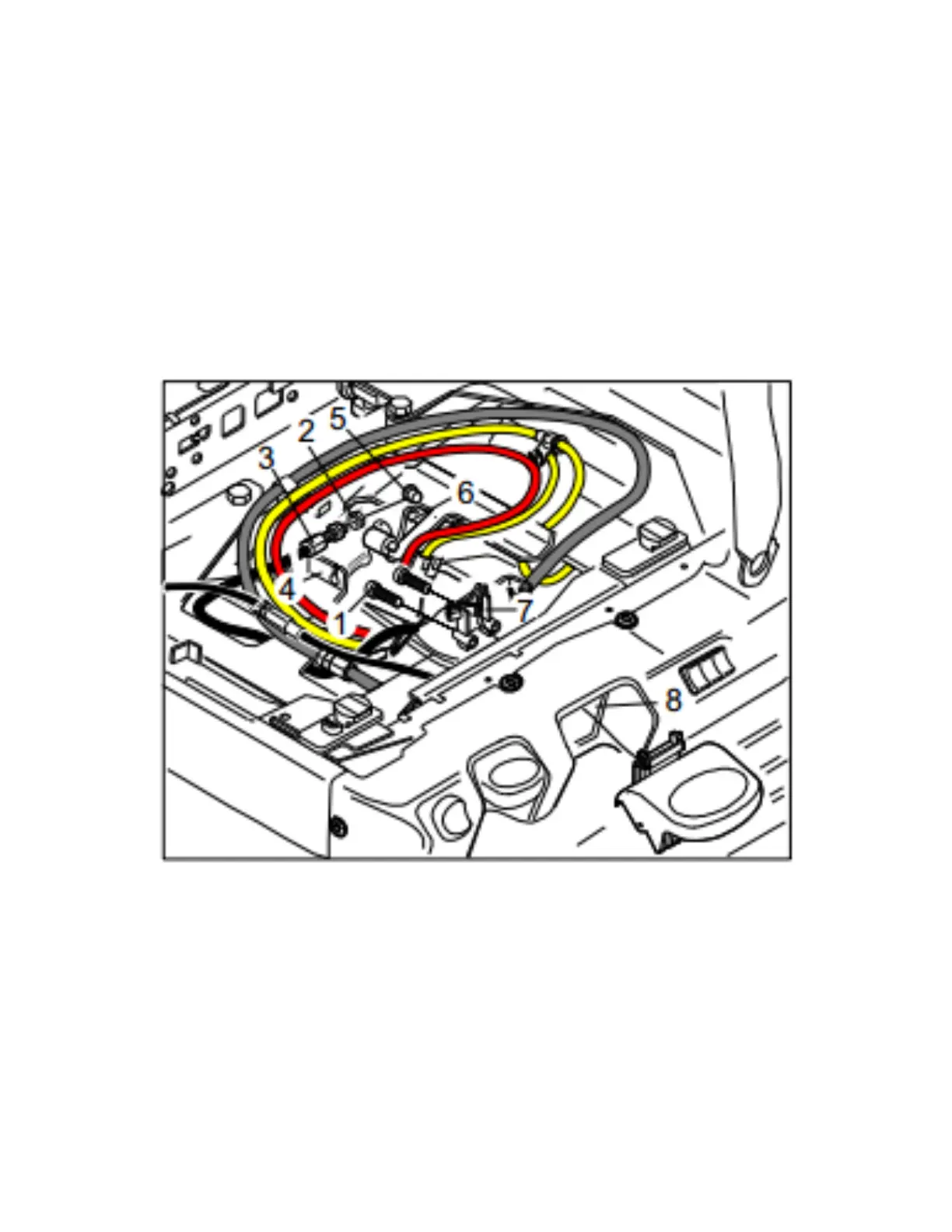

Height Adjustment Handle/Cable
- Adjust seat frame tilt to the upmost position.
- Remove seat cushion. See page 9.
- Remove nut (2), remove Bowden cable (3) from fastening (4) and pull cable nipple (5)
out of valve lever (6)
- Remove two screws (1), Push Bowden cable (3) out of bearing (7) and pull height
adjustment handle and cable (8).
• After mounting: Adjust valve (6) for height adjustment (how do you do this?).
