Minimizer 101363 - Tooth Segment for Backrest Adjustment

22
Tooth segment for backrest adjustment
- Remove seat cushion. (See page 9) and Backrest (See page 13)
- Remove side cover for seat frame without disconnecting hoses or electrical connections.
- Remove e-clip (1) and loosen springs (2) at pin (3) of lever (4).
- Remove nuts (5)
- Slide plate (6) off.
- Remove tooth segment (7)

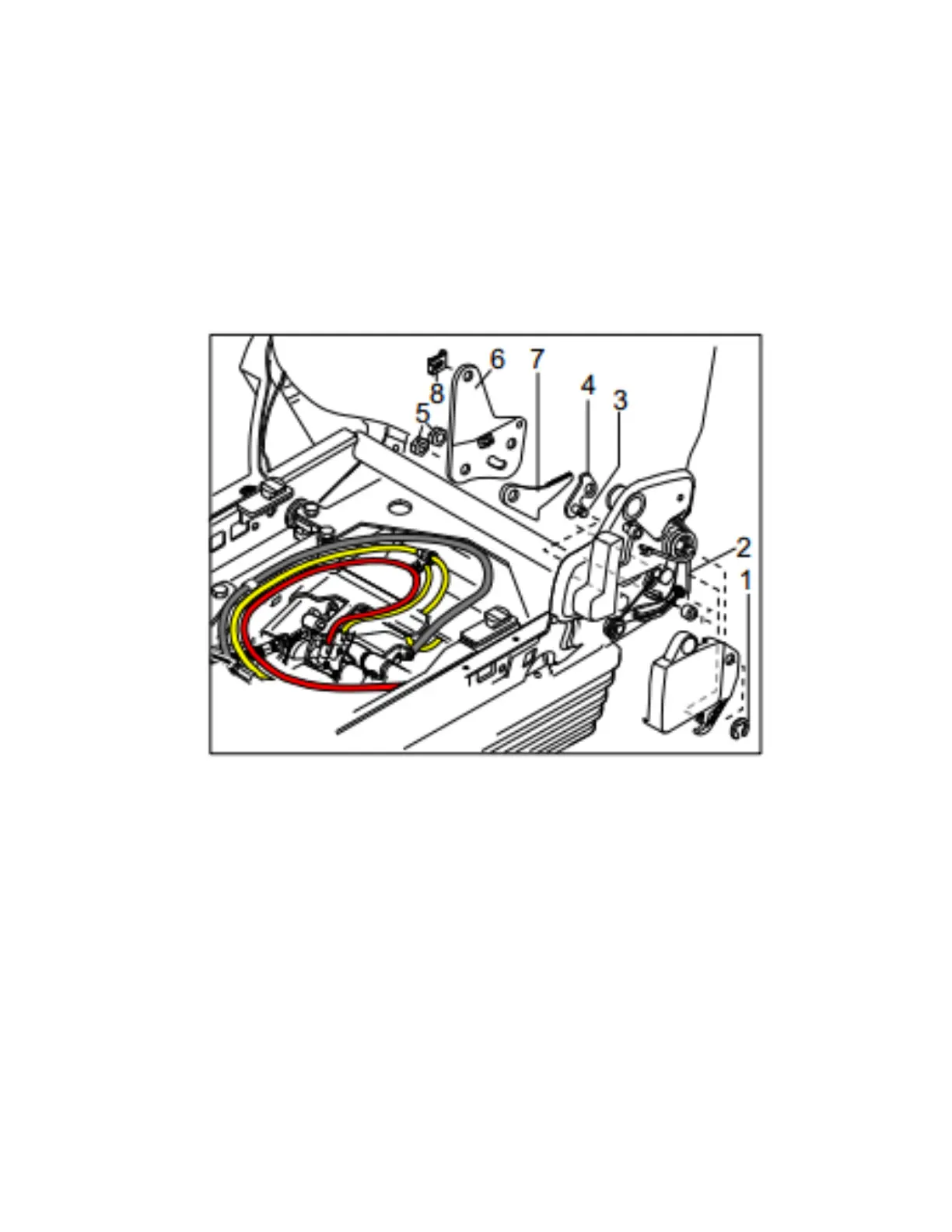

Figure 10
