Climate Kit Assembly

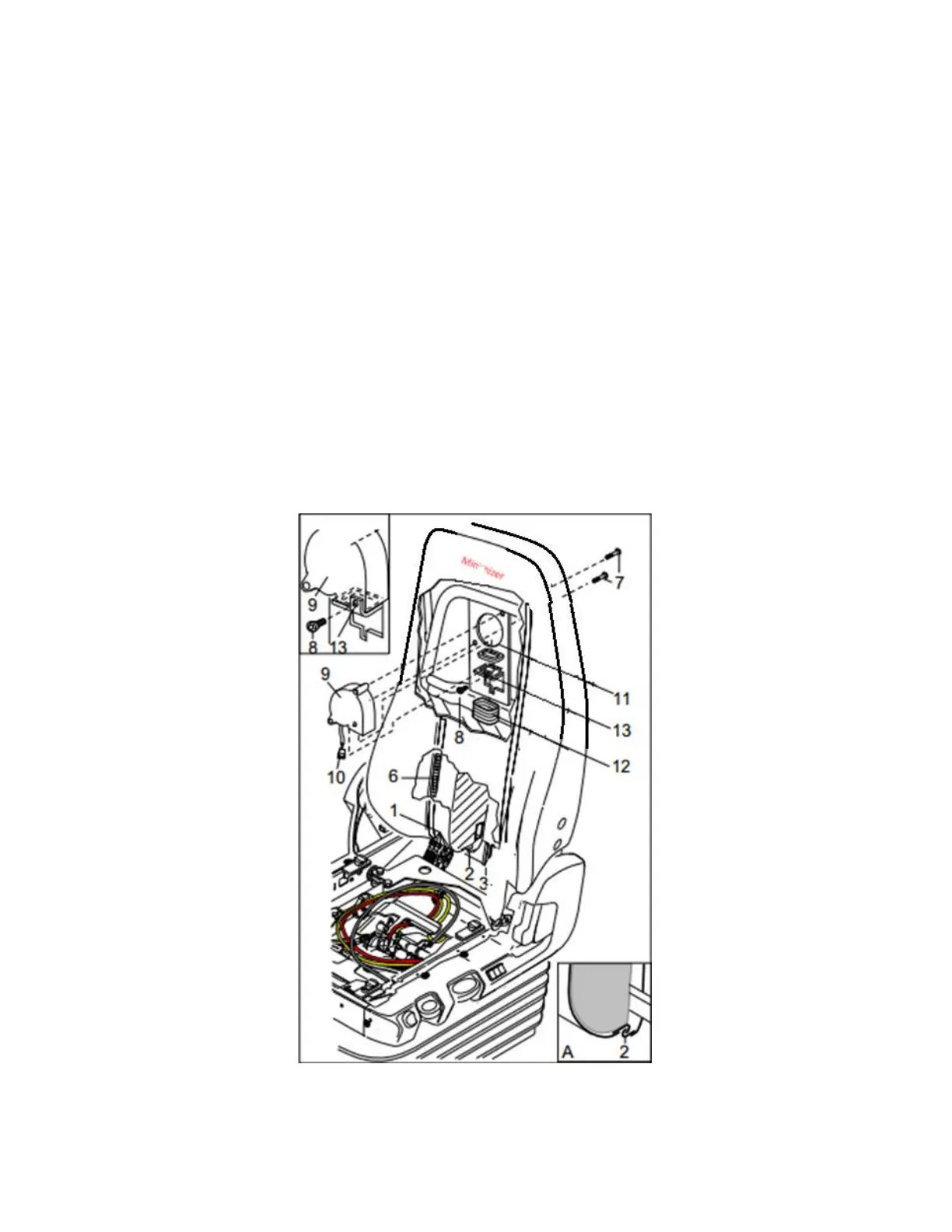

- Disconnect three air hoses (1) and two electrical connector (heater and fan)
- Unhook C-Profiles (2).
- Pull cover upwards while loosening fixing Velcro (6).
- Remove cardboard.
- Remove Foam from Backrest frame
- Disconnect electrical connection (10) and take out fan (9).
- Remove two screws (7) and one screw (8) out of fan (9).
- Press in corrugated tube (12) a little, unhook it and pull it out of the fan bracket (11).
Retain for reuse.
- Remove foam seal from fan bracket (11).
- Remove backer from new foam seal and stick to new fan.
- Mount corrugated tube into fan bracket (11).
- Place fan on fan bracket and secure with screws (7 and 8)
- Place foam on back frame insuring corrugated tube is in back foam channel.
Reinstall upholstery, insuring cardboard is placed in original position.
