35

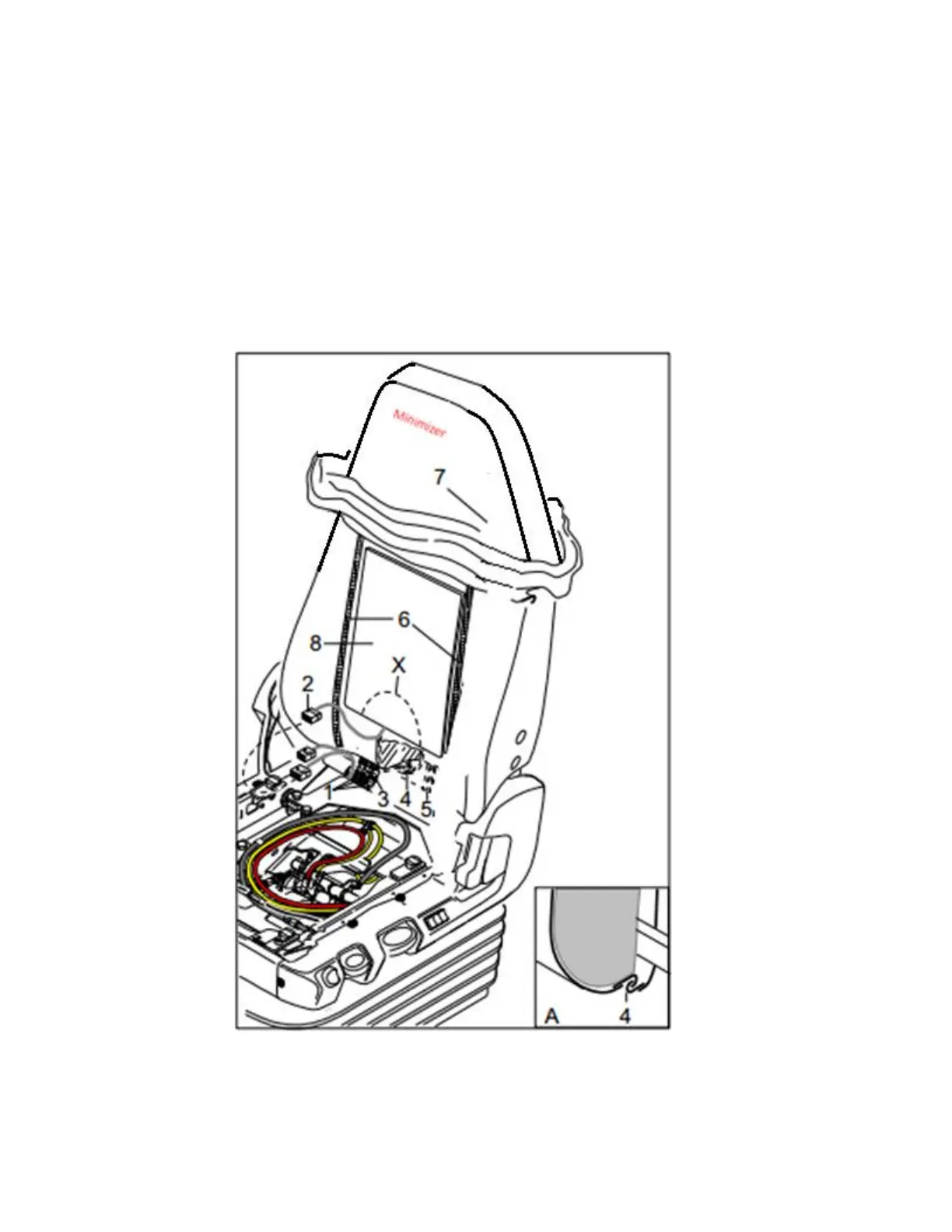

Heating backrest
- Remove seat cushion.(See Page 9)
- Pull cover (7) upwards while loosening fixing tapes (6).
- Disconnect three air hoses (3), electrical connector (2) and electrical connector, () if
existing.
- Unhook C-Profiles (4).
- Pull off heater (8) carefully from the foam.
- If the heater (8) is not removable without tearing up the foam (4), carefully cut the
heater along the broken line X and fix the new heater on top the old heater.
-
