Minimizer 101363 - Tooth Segment for Shoulder Adjustment (Articulating Back)

30

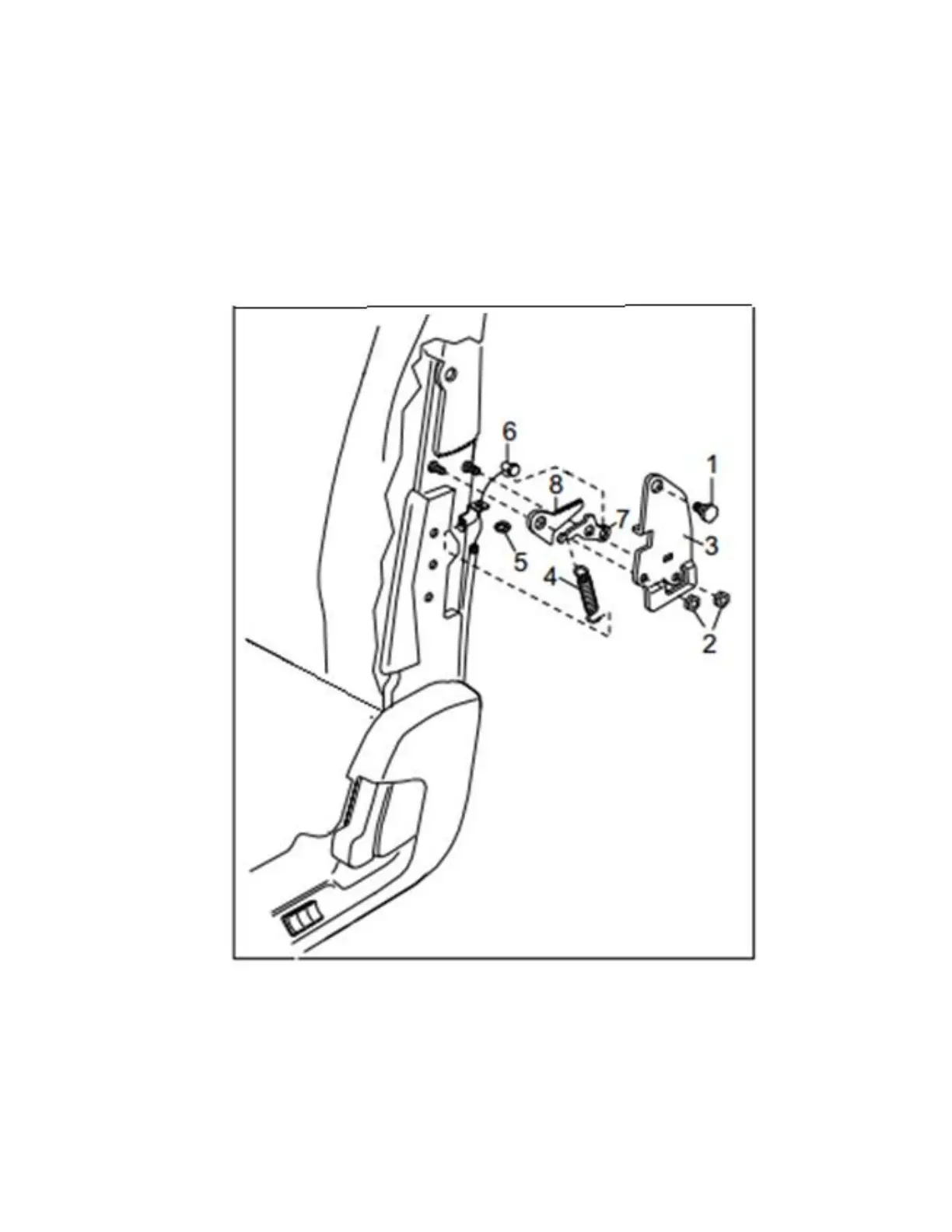

Tooth segment for shoulder adjustment (articulating back)
- Remove backrest cover and pull it upwards to the shoulder area.
- Unscrew bolt (1), nuts (2) and take off plate (3).
- Unhook spring (4).
- Remove retaining washer (5) and remove Bowden cable (6) from lever (7).
- Take out lever (7) and tooth segment (8).
Figure 18
