Minimizer 101363 - Height Adjustment and Shock Absorber Kit

27
Height Adjustment
When exchanging the shock absorber, all parts of the kit must be exchanged!
- Remove seat cushion and pull out lower bellow fixation.
- Secure suspension unit at the highest position by a distance block (length: 75mm).
- Undo nut (1), loosen screw (2) and remove socket (3).
- Unscrew lower shock absorber fixation (5).
Remove retaining washer (6) and lever Bowden cable (7 - grey cable) out of fastening ().

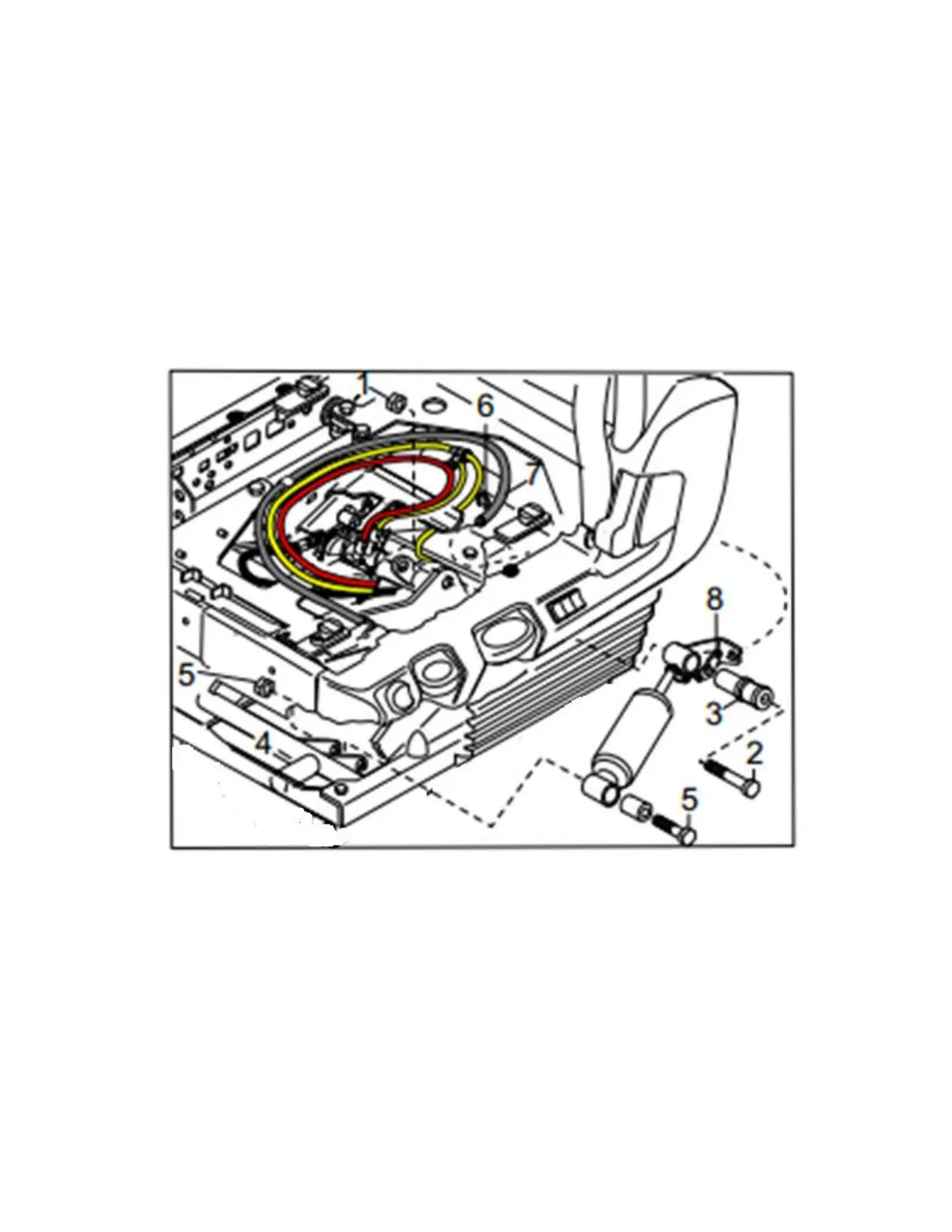

Figure 15
