31

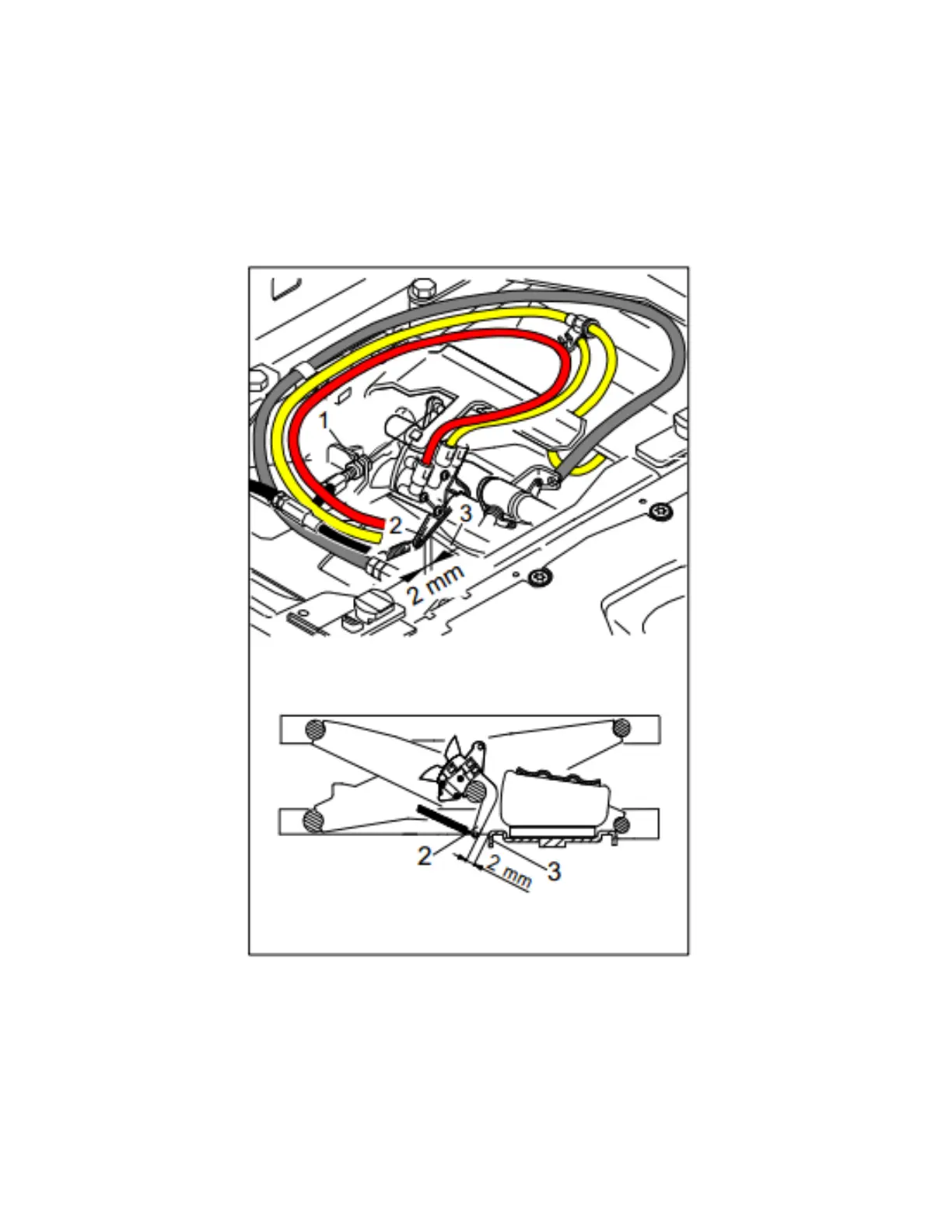

Valve adjustment
- Lower seat and adjust Height Adjustment to upper position.
- Adjust Bowden cable (Black) by adjusting nut (1) so that the distance between lever (2)
and air spring holder (3) comes to 2mm.
Bowden cable adjustment:
- Pull handle (5) to the upmost position and adjust Bowden cable (# - Color) of valve () for
height adjustment in that way, that lever arm (?) has still a little clearance.
