Minimizer 101363 - Seat Cushion Fan Assembly

37

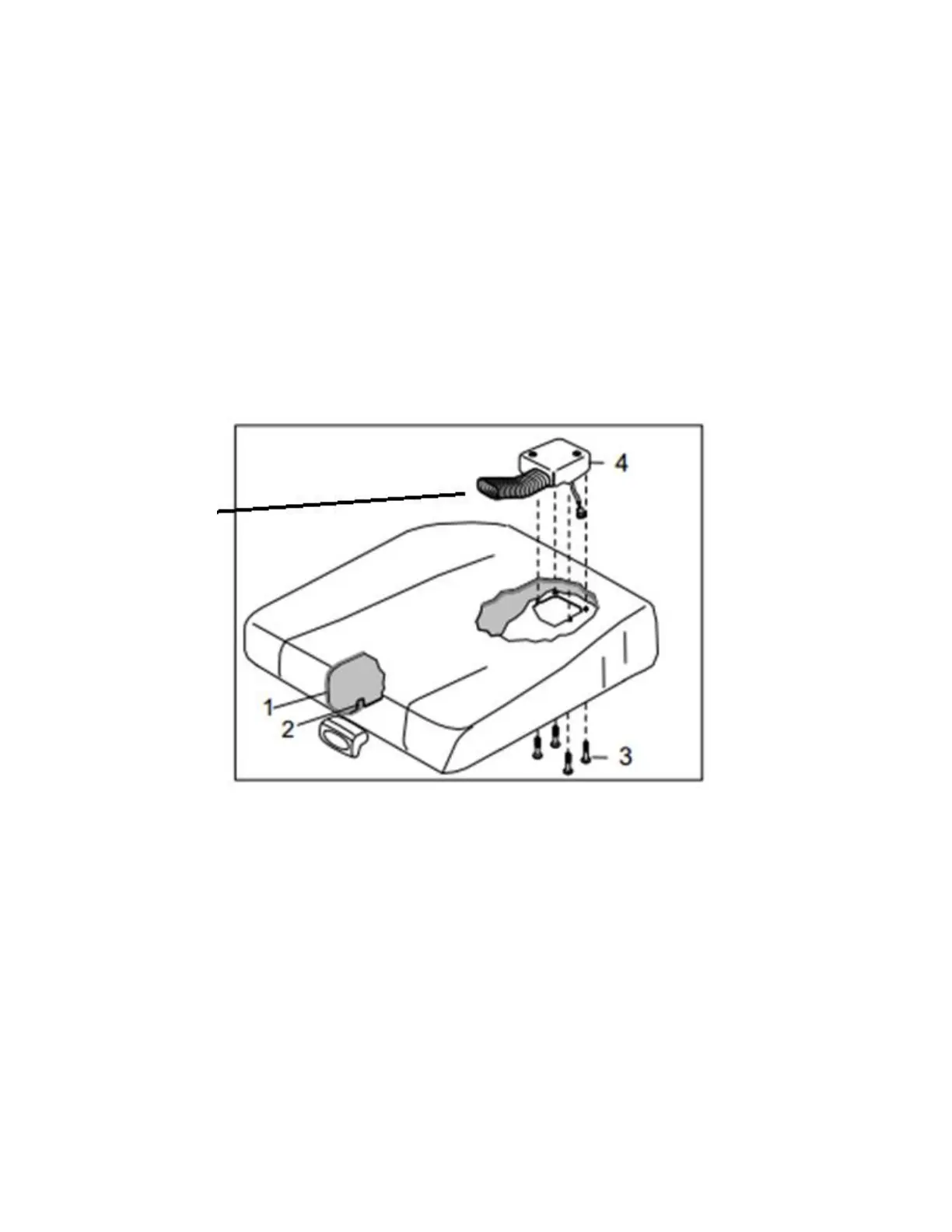

Fan for seat cushion:
- Remove seat cushion.( See page 9)
- Remove four screws retaining fan assembly (3) to seat pan.
- Pull fan assembly (4) from seat pan.
Hint:
Before mounting the cover, bend hooks in the groove (2) from the ground plate
(1), if necessary.
Corrugated
Tube
Figure 23
