21
Adjustment instructions for Bowden cable of tilt adjustment
- Pull lever for tilt adjustment up.

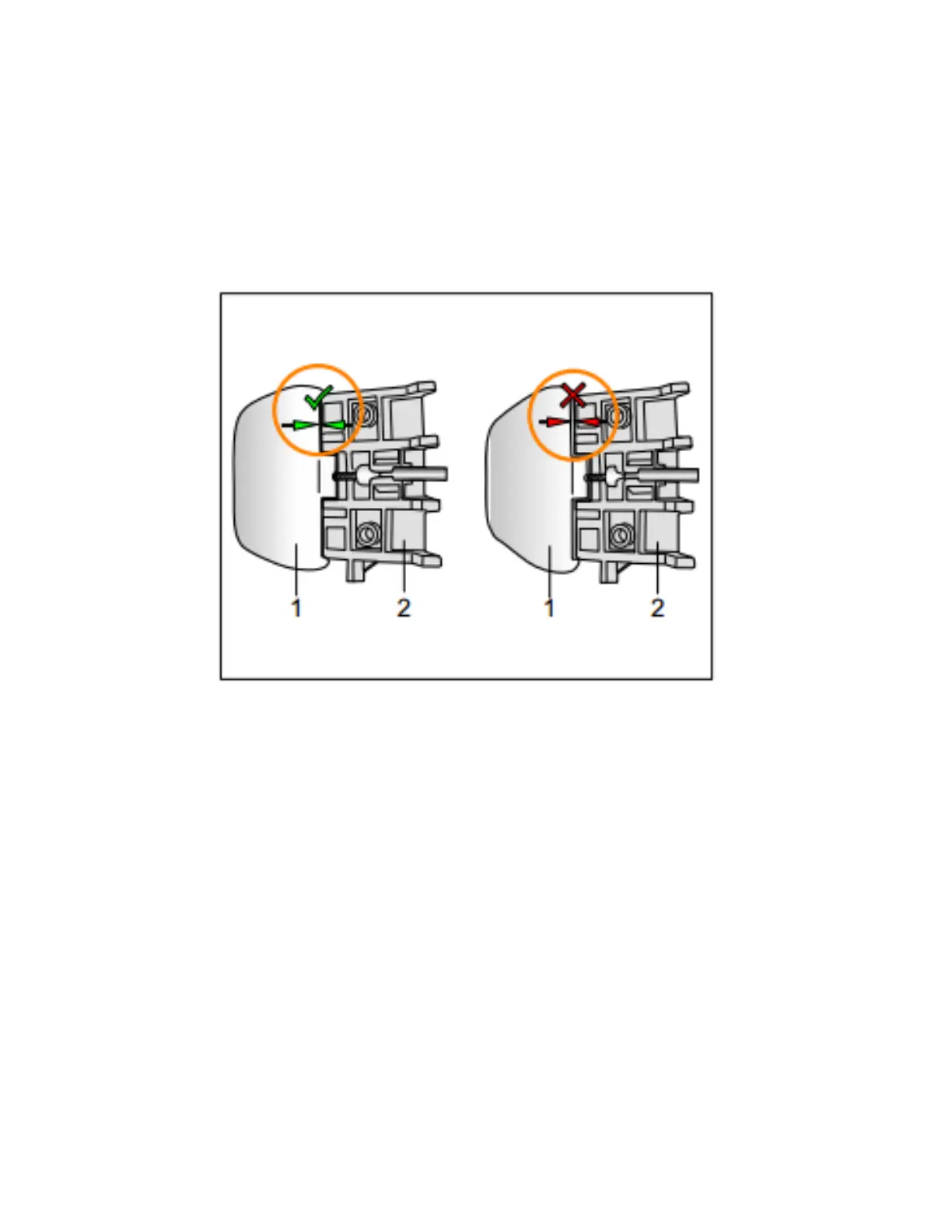

- Adjust Bowden cable in a way, that between lever (1) and plate (2) so no gap is visible.
- The inclination adjustment must release completely and must move noiselessly when
pulling the lever (no clattering of tooth segments).
