Minimizer 101363 - Lever and Spring Adjustments; Backrest Adjustment Lever;Springs; Shoulder Adjustment Mechanism

17
Lever / Lever Springs for Backrest
Lever for backrest adjustment and lever springs
- Remove side cover for seat frame (lever side without loosening hoses)
- Remove e-clip (1), Remove handle (3) then remove springs (2) and (5) and remove
shoulder handle bracket (6).
Shoulder adjustment
- Remove e-clip (7) and roller (8)
- Pull out securing plug (10) and remove cable ball (11) from lever (pull cable out of cable
guide, if necessary)
- Remove bolt (12)

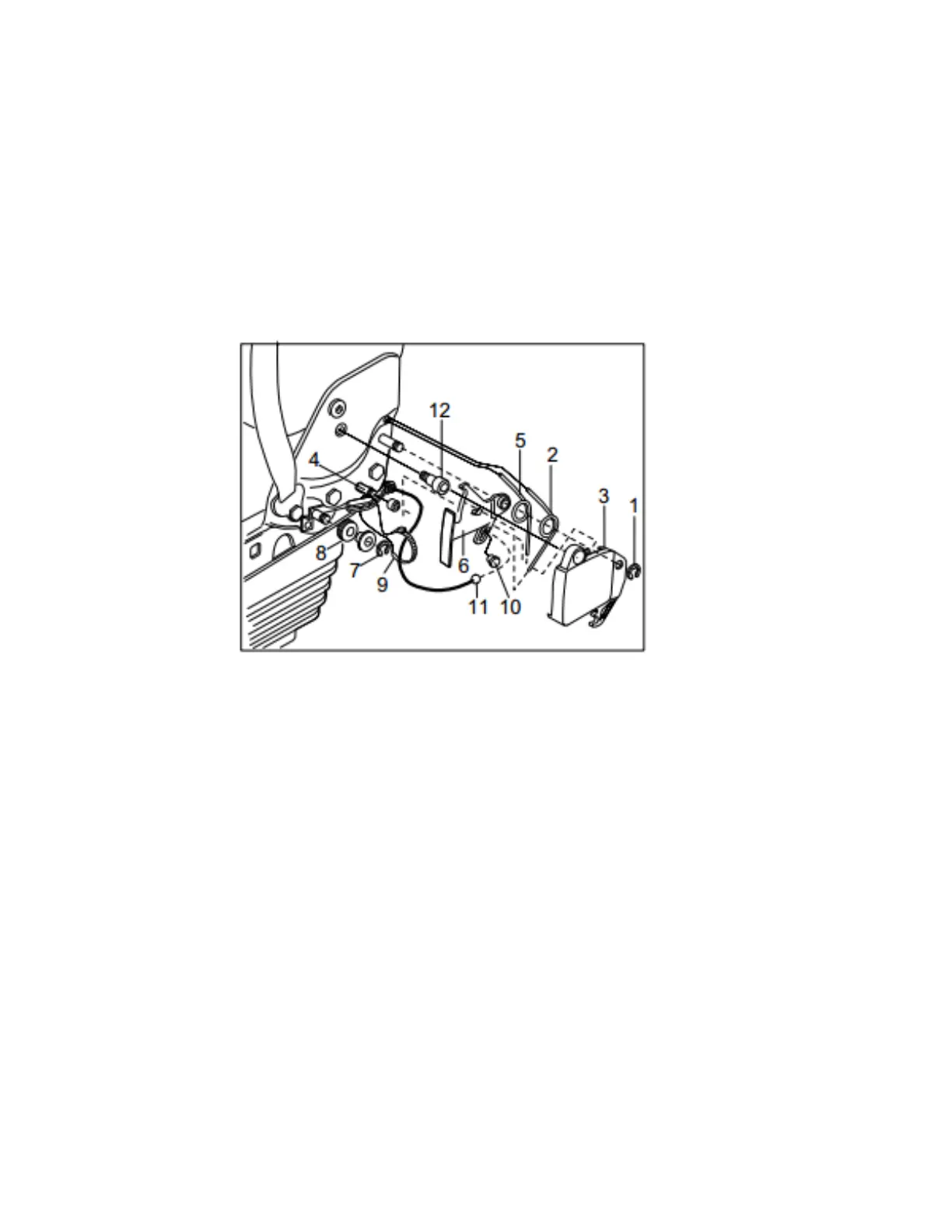

Figure 5
