Lever for Tilt Adjustment

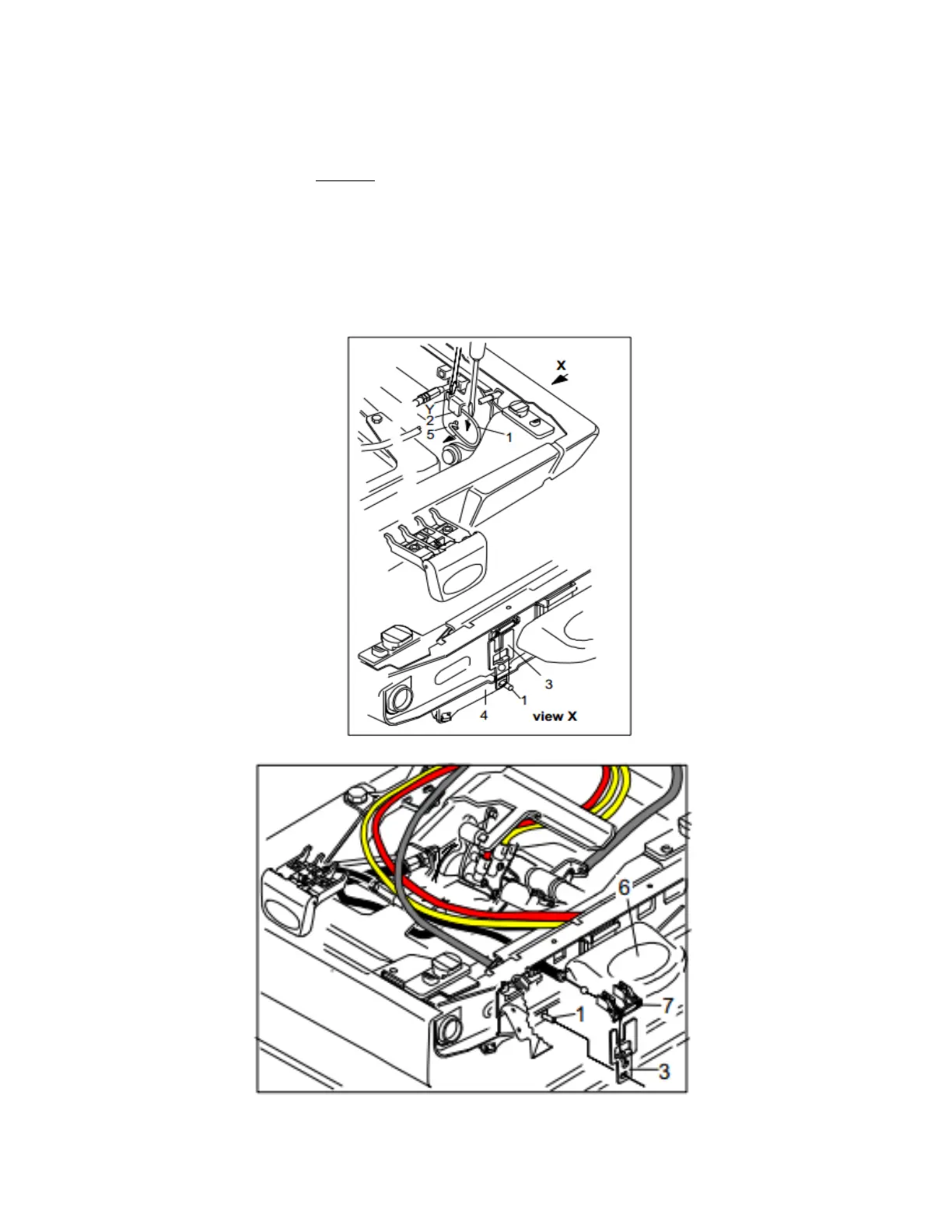

- Remove seat cushion.(see page 9)
- Remove side cover without disconnecting hoses (yellow, red and clear).
- Adjust seat frame tilt adjustment to upper position.
- Press down spring (1), unhook from fixation (2) and pull spring out from levers (3).
- Remove handle for height adjustment (6).
- Lever bearing (7) out of seat frame and remove Bowden cable (black) from lever (3)
- When mounting, hook spring (1) at first in lever (3).
- Press down spring (1) with a screwdriver in area “Y” and hook spring behind fixation (2).
