Air Spring

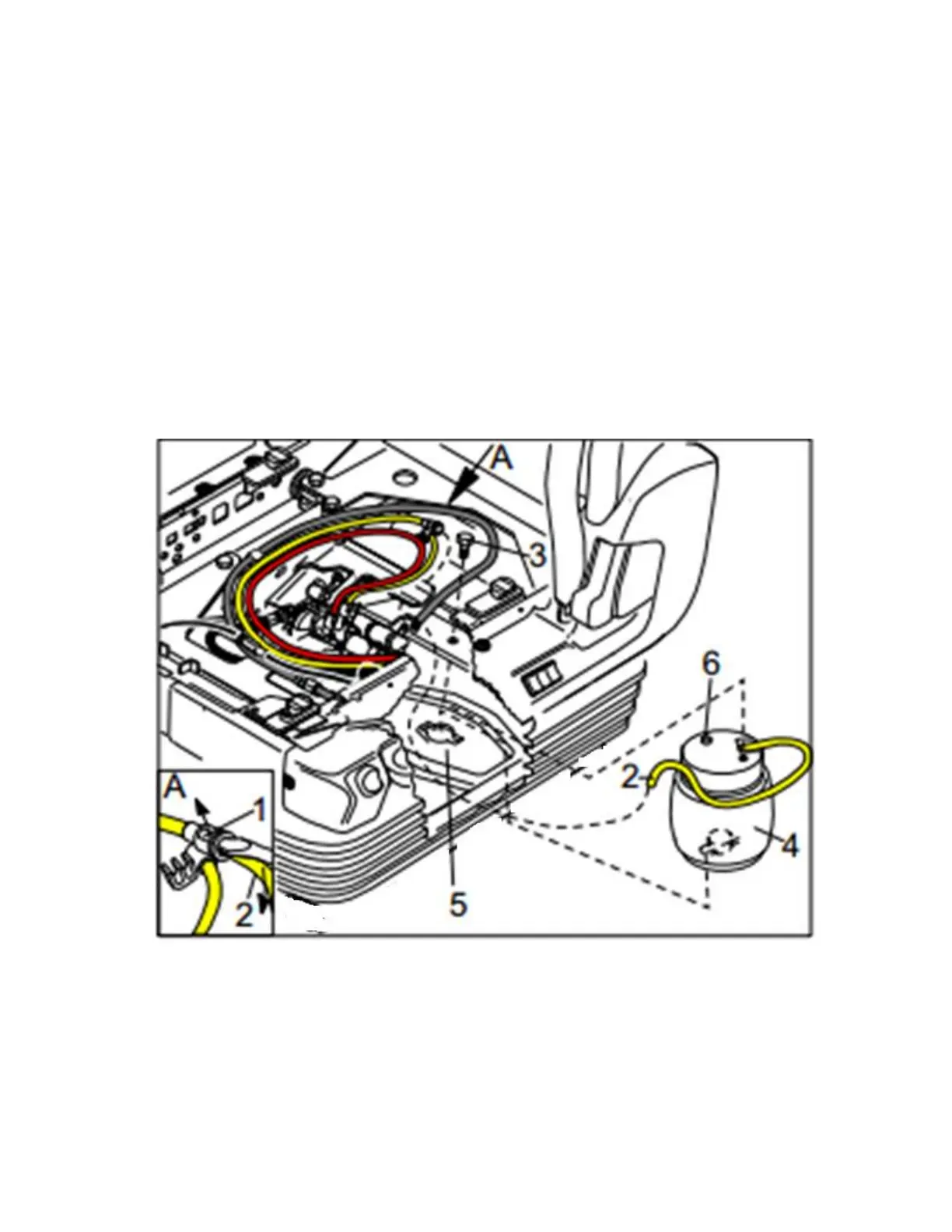

- Remove seat cushion. (see page 9)
- Pull out Bellow fixation in front and side area.
- Secure suspension unit (4) at the highest position with block (length: 75mm) between
the scissor axle and lower suspension frame.
- Remove lower shock absorber bolt (5) (refer to figure 15) lift up shock absorb (), and
move out air spring (4) frontwards.
- Lift up fixing hook (1) safely and Remove air pipe (2)
- Undo Screw (3).
- Turn round air spring (2) 90 degrees and take it out from lower holder (5).
- After mounting the new air spring, nose must fit to the hole at the upper air spring
holder.
