9

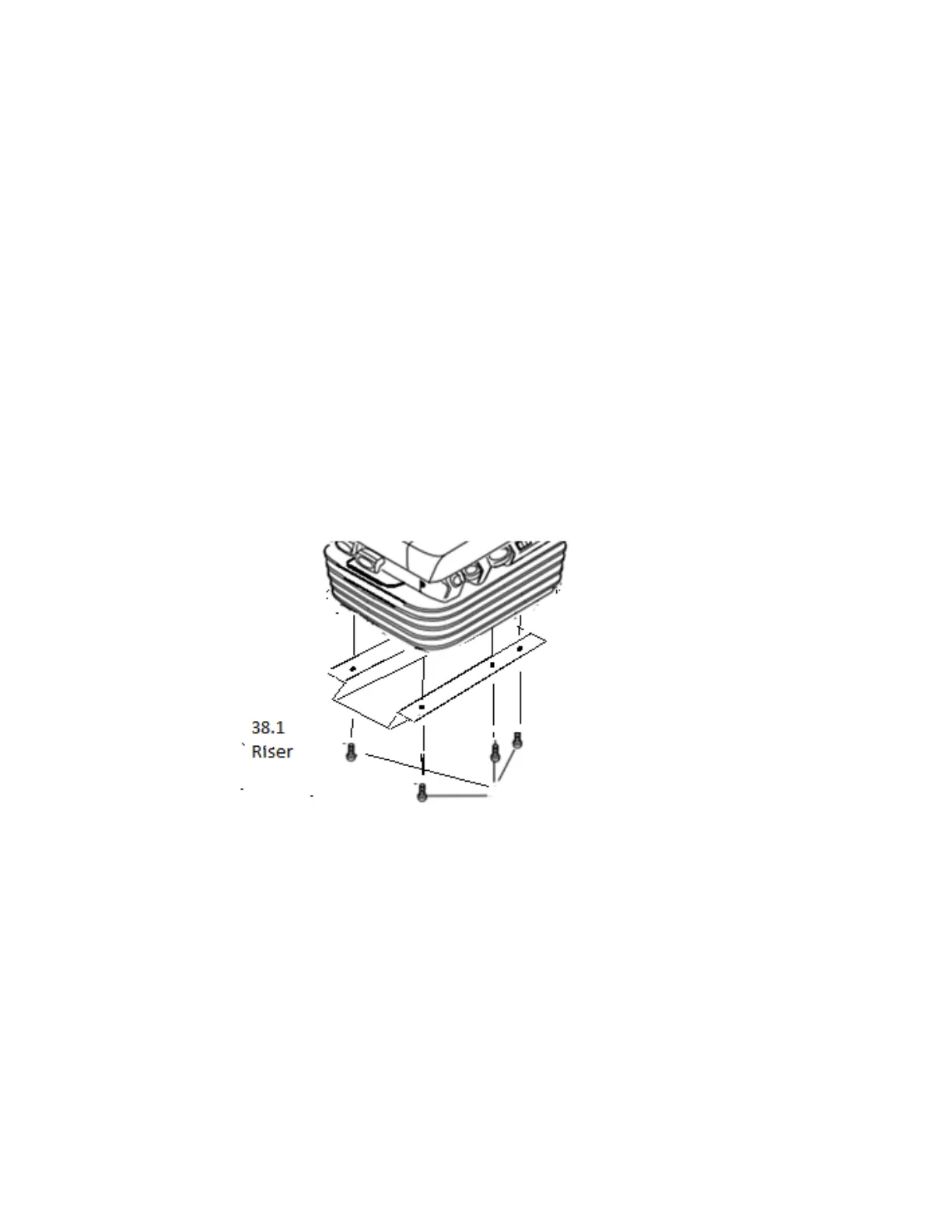

Seats using 38.1 Risers:
- Remove old seat from Truck and keep floor bolts.
- Disconnect air supply lines and electrical connections.
- Position New 38.1 Riser so holes in riser line up with the holes in floor. Use original floor
bolts to secure riser to floor.
- Remove 4 bolts at bottom corners of suspension.
- Position Seat and suspension on top of riser by lining up riser holes with threaded holes
at bottom corners of suspension. Install 6 bolts included with riser up into bottom
corner holes of suspension (Torque to 20 NM +/ - 5NM).
-
-
To Next Page
