34
Heating seat cushion

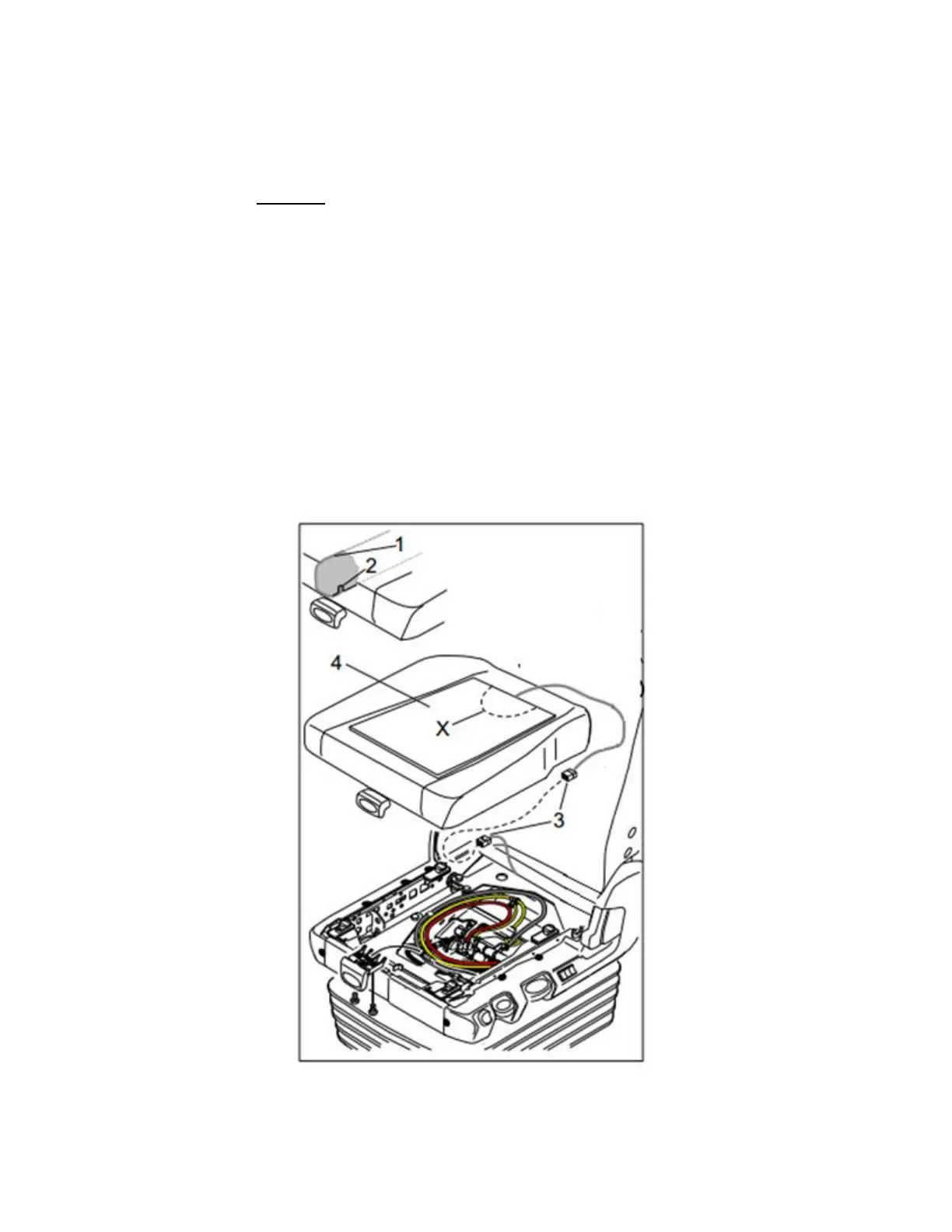

- Remove seat cushion. (See Page 9)
- Lever seat cushion cover out of beading (2) running around seat ground plate (1).
- Disconnect electrical connection (3).
- Pull off heater (4) carefully from the foam.
Hint:
If the heater (4) is not removable without tearing up the foam, cut the heater
along the broken line X and pull back protective covering from adhesive on the
new heater attach new heater on top of old heater. Insure new heater is securely
adhered to old heater.
Hint:
Before mounting the cover bend back hooks at the beading (2) of the ground plate
(1), if necessary.
