Swivel Changeover
Seats come from the factory with the swivel unit configured for the left side of the truck cab. If
the seat is to be installed on the right side of a vehicle, the swivel unit must be reconfigured:
- Remove the seat cushion assembly. (Figure 1)
- Locate the two M8 socket head bolts in the swivel unit near the large thru hole as
shown in yellow below.

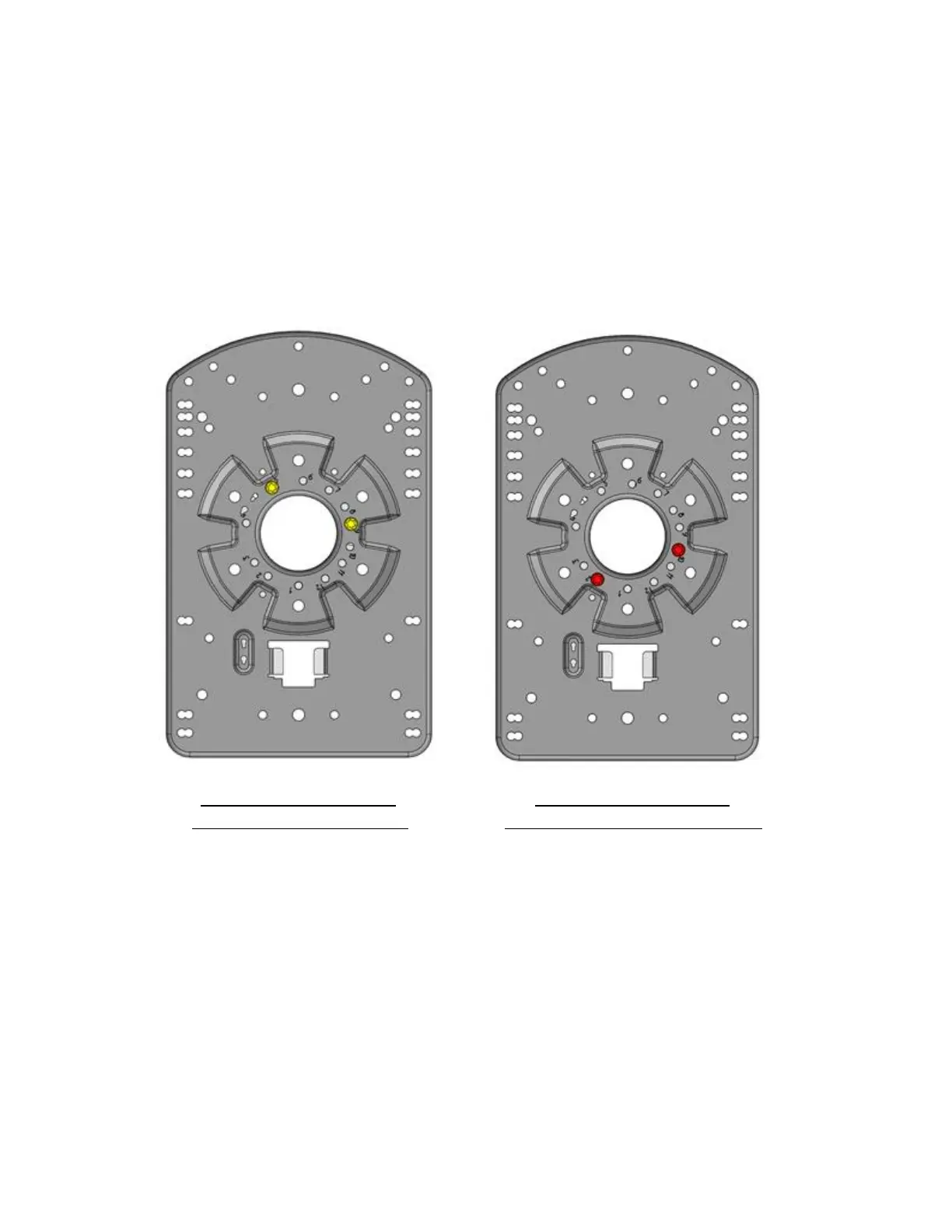

Swivel unit configured for Swivel unit configured for
Driver side (left) of truck cab Passenger side (right) of truck cab
- Take the M8 bolts you just removed from hole position 5 and hole position 9 and move
them to the locations shown in red in the image on the right, hole positions 2 and hole
position 10 as shown above.
- Torque the M8 bolts to 24 foot-pounds in the new locations.
- After seat cushion assembly is replaced, return swivel adjustment handle to locking
position.
