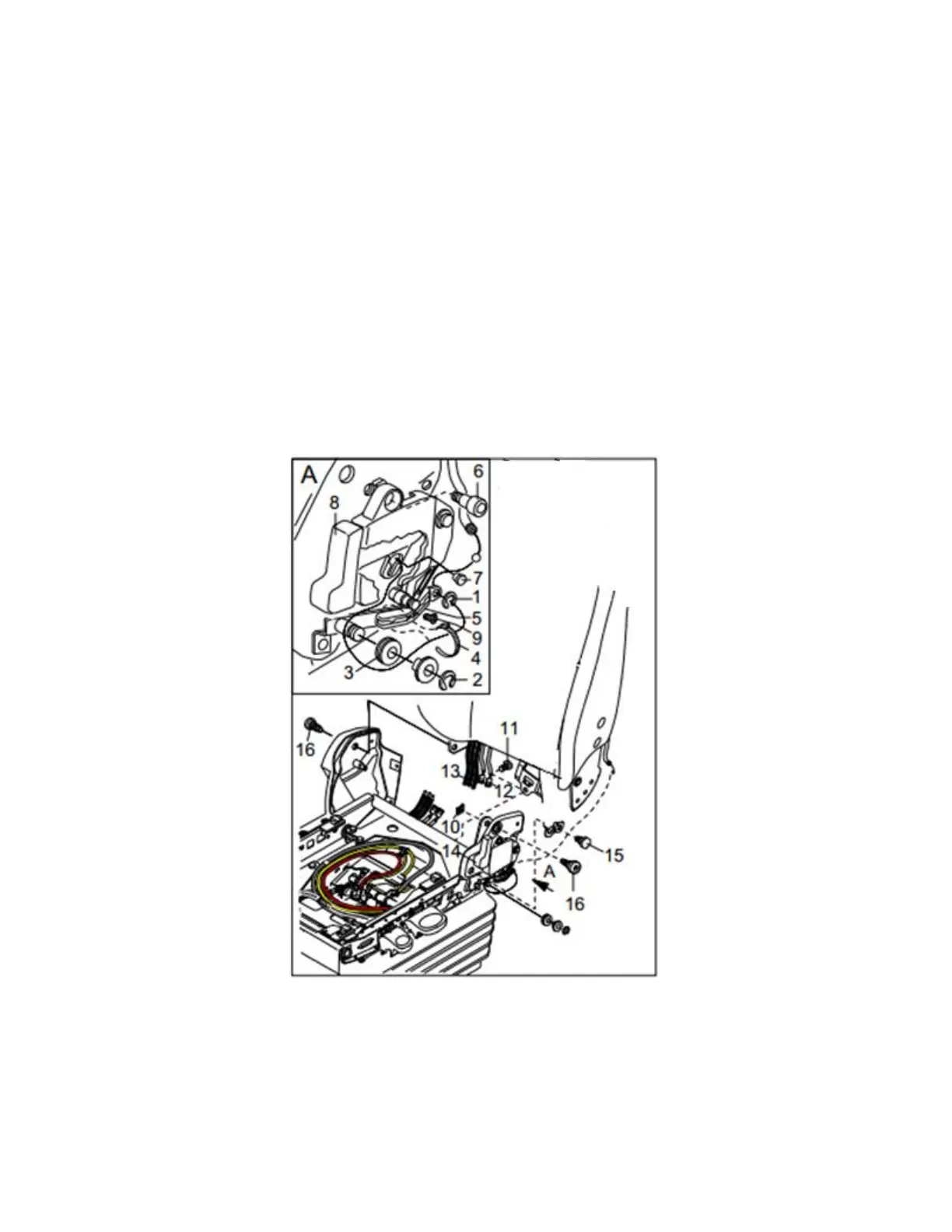

Backrest Removal
- Remove shoulder adjustment handle (8) in figure 4
- Remove side covers (Both sides) See page 11.
- Remove plug (7).
- Remove e-clip (2) and roller (3).
- Remove cable from cable guide (5).
- Remove plug (9) from cable guide.
- Take out e-clip (1), and completely remove cable from guide.
- Disconnect lumbar airlines (13) and electrical connections (12).
- Remove clip (10) from control side backrest bolt, then remove both (16) bolts.
- Remove backrest from frame.
