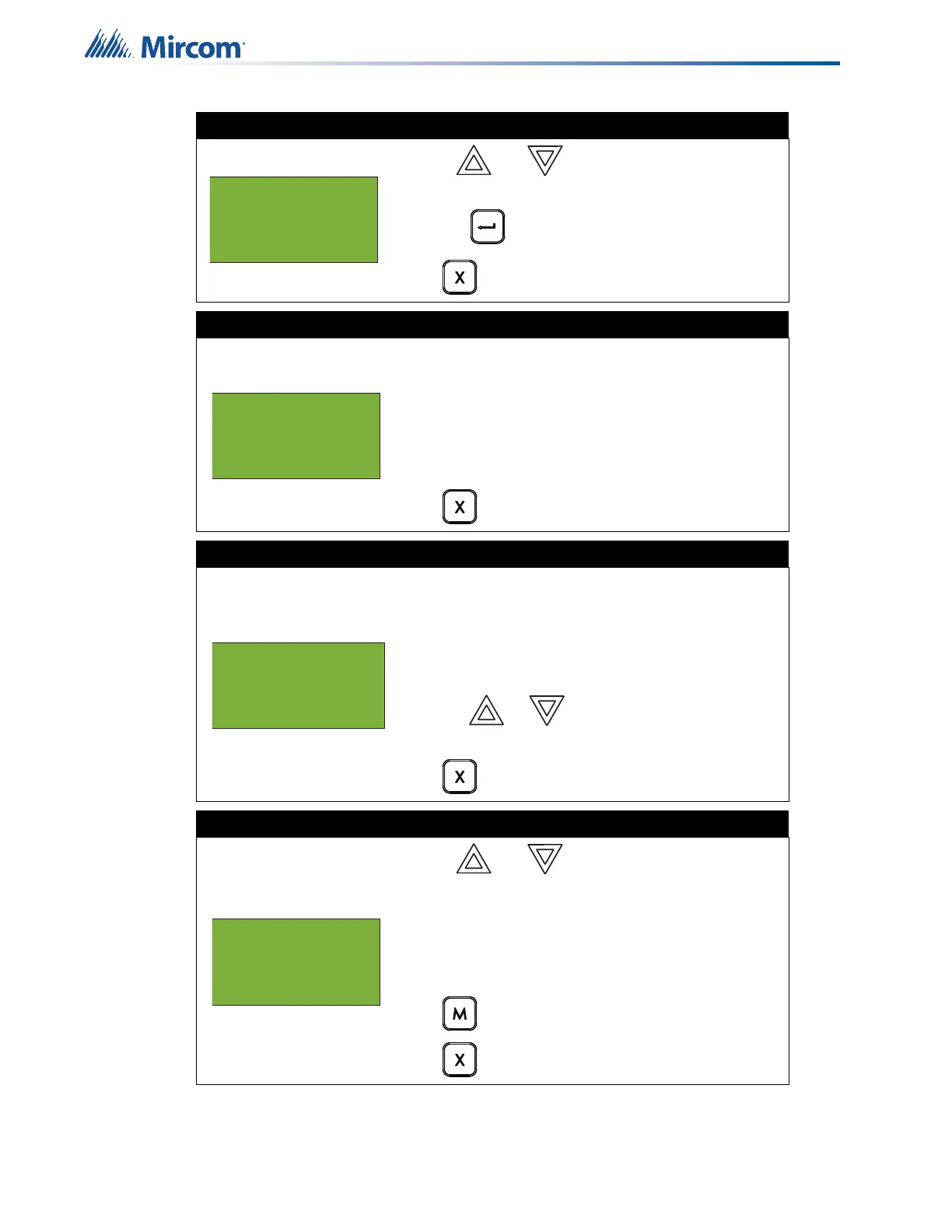

Front Panel Menu Operation
Step 2: Select the walk test configuration
1. Use and to scroll the cursor through the
menu.
2. Press to select a Walk Test Configuration.
Press to exit and return to the Command Menu.
Step 3: Start the walk test
Start or Resume Test for device inspection.
1. Select Start to begin a Walk Test.
2. Select Resume to continue the Walk Test.
As the test runs, the counts of Alarms and Troubles
increase as they are recorded (logged) during the
Audible Test.
Press to end the walk test at any time.
Step 4: Main walk test screen
During the Assisted Walk Test the display is as shown.
A = number of Walk Test alarm events
T = number of Walk Test trouble events
D = number of duplicate alarm and trouble events
R = number of remaining events from the Walk Test list
1. Press or to display the first Device
Screen.
Press to exit and return to the Command Menu.
Step 5: Walk test device screen
1. Use and to scroll the cursor through the
devices.
Device display is as shown.
The device ID is shown in the
format described in section 5.15 on page 60
.
A = total number of alarm events for the device.
T = total number of trouble events for the device.
Press to return to the Main Walk Test screen.
Press to exit and return to the Command Menu.
- Walktest -
1st Floor
2nd Floor
- Walktest -
1 Start
2 Resume
1st Floor
A:xxxx D:xxxx R:xxxx
T:xxxx D:xxxx R:xxxx
Press CANCEL to end
02-01-03IN-S104.001
A: nnn T:nnn
Tag 1
Tag 2
To Next Page
