56
Field Wiring
8.2.6 Single Loop Terminal Connections - Style 6

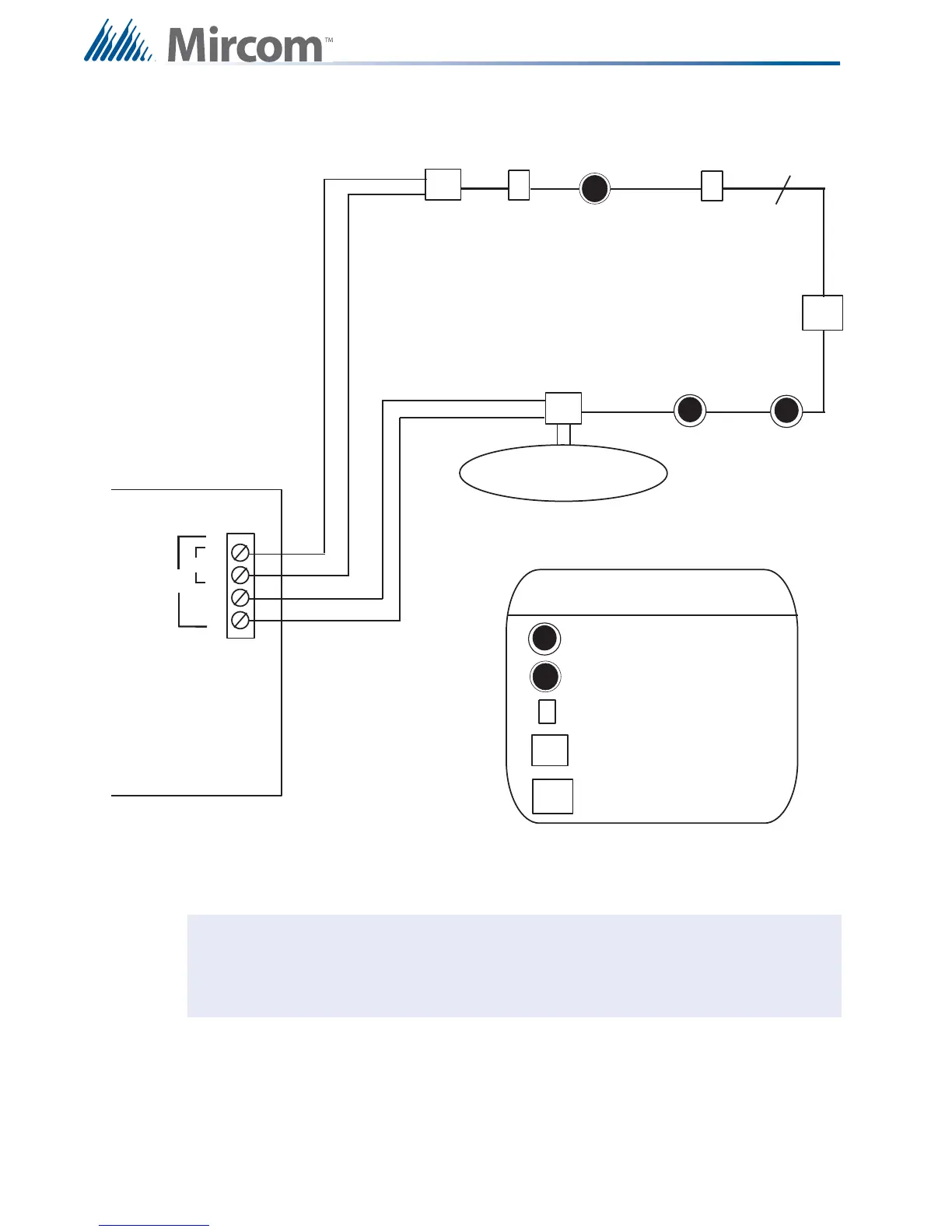

Figure 38 Single Loop Terminal Connections - Style 6
Notes: All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
Loop wiring: maximum loop resistance is 40 ohms total. These lines are fully
supervised.
F
ADDRESSABLE
THERMAL SENSOR
ADDRESSABLE
SMOKE DETECTORS
F
LEGEND
Addressable Smoke Sensor
Addressable Thermal Sensor
Addressable Manual Pull Station
F
Addressable Monitor Module
TWO WIRES
S
S
H
Addressable Relay Output Module
S
H
M
M
RO
M
RO
B
A
+
-
+
-
ANALOG
LOOP A
ALC-198S SINGLE
LOOP MODULE
Conventional 4-Wire Smoke
Detectors, Heat Sensors
and Manual Pull Stations
