4. Remove three screws and free the TV tuner board carefully. (Figure 2-13)
Reassembly
1. Fit the TV tuner board and secure with two screws.
2. Reconnect the the TV tuner board’s cable.
3. Fit the TV tuner board cover and secure with two screws.
4. Replace the housing shielding and CPU cover. (See the step 4, 3 of section 2.2.2 reassembly)

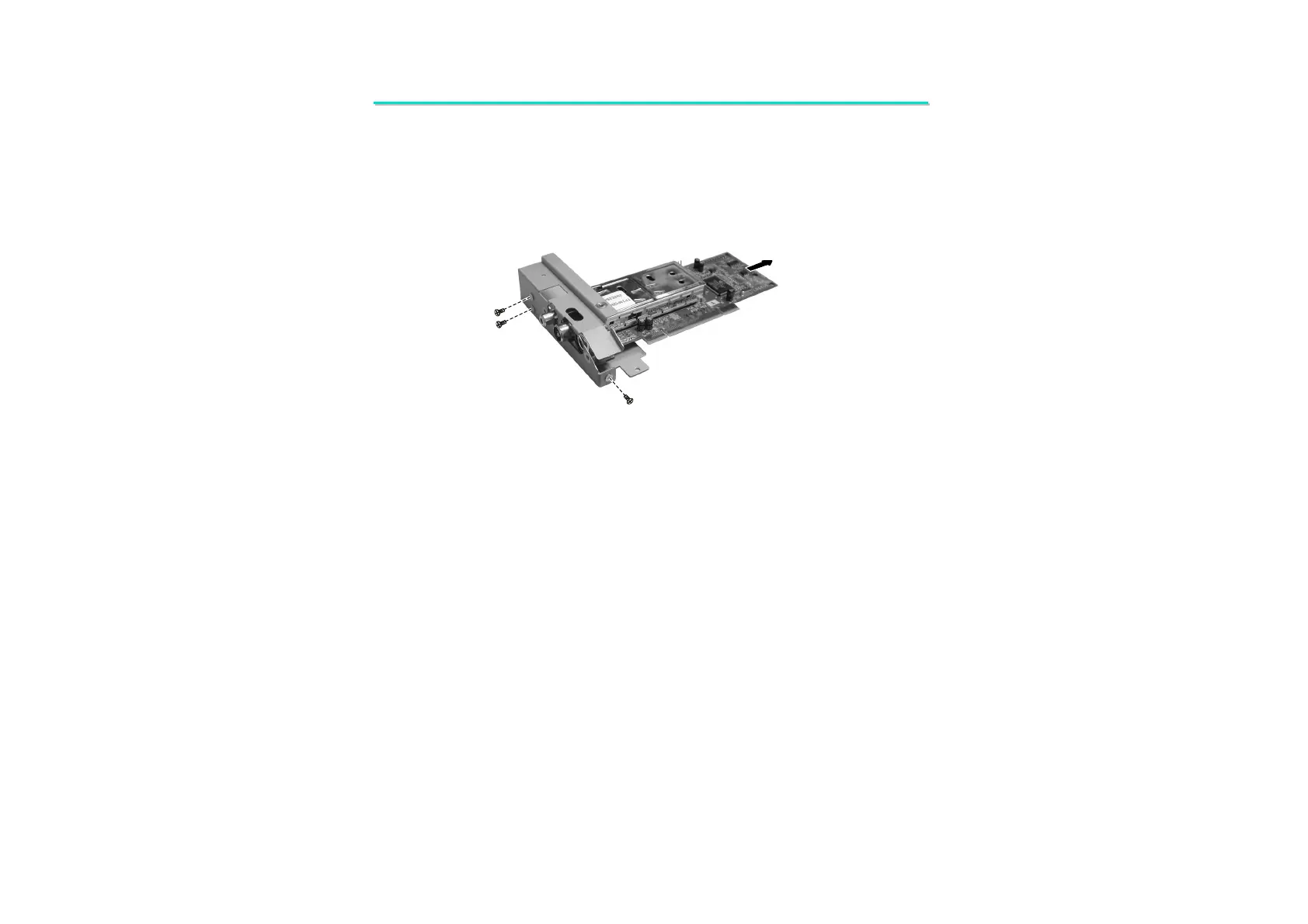

Figure 2-13 Free the TV tuner board
