2.2.4 TV Tuner Board
Disassembly
1. Remove the CPU cover and housing shielding. (See the step 1, 2 of section 2.2.2 disassembly)
2. Remove two screws fastening on the TV tuner board cover. (Figure 2-11)
3. Disconnect the TV tuner board’s cable () and unscrew two screws fastening the board () . (Figure 2-12)

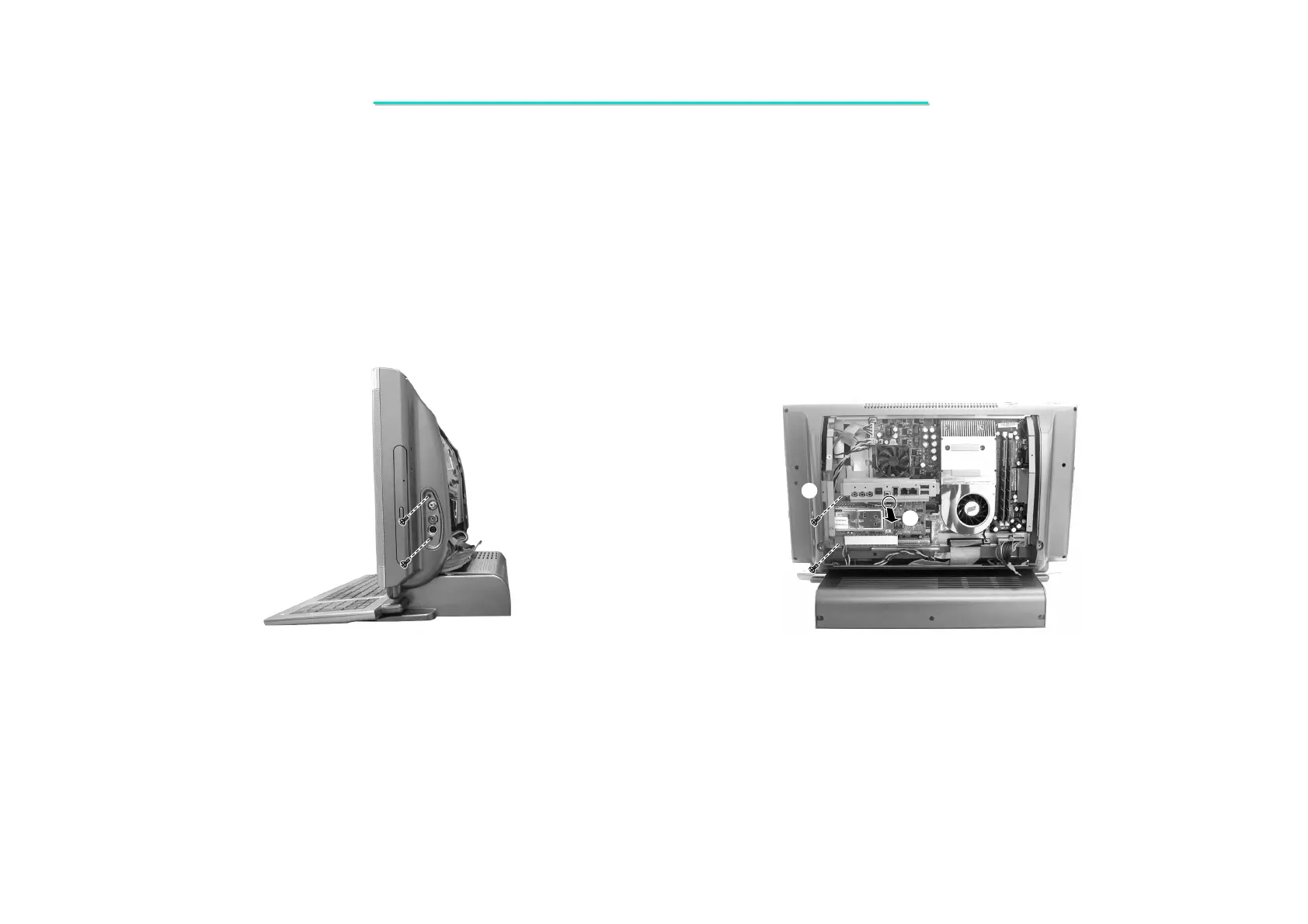

Figure 2-11 Remove two screws Figure 2-12 Free the TV tuner board


