3. Definition & Location of Connectors / Switches

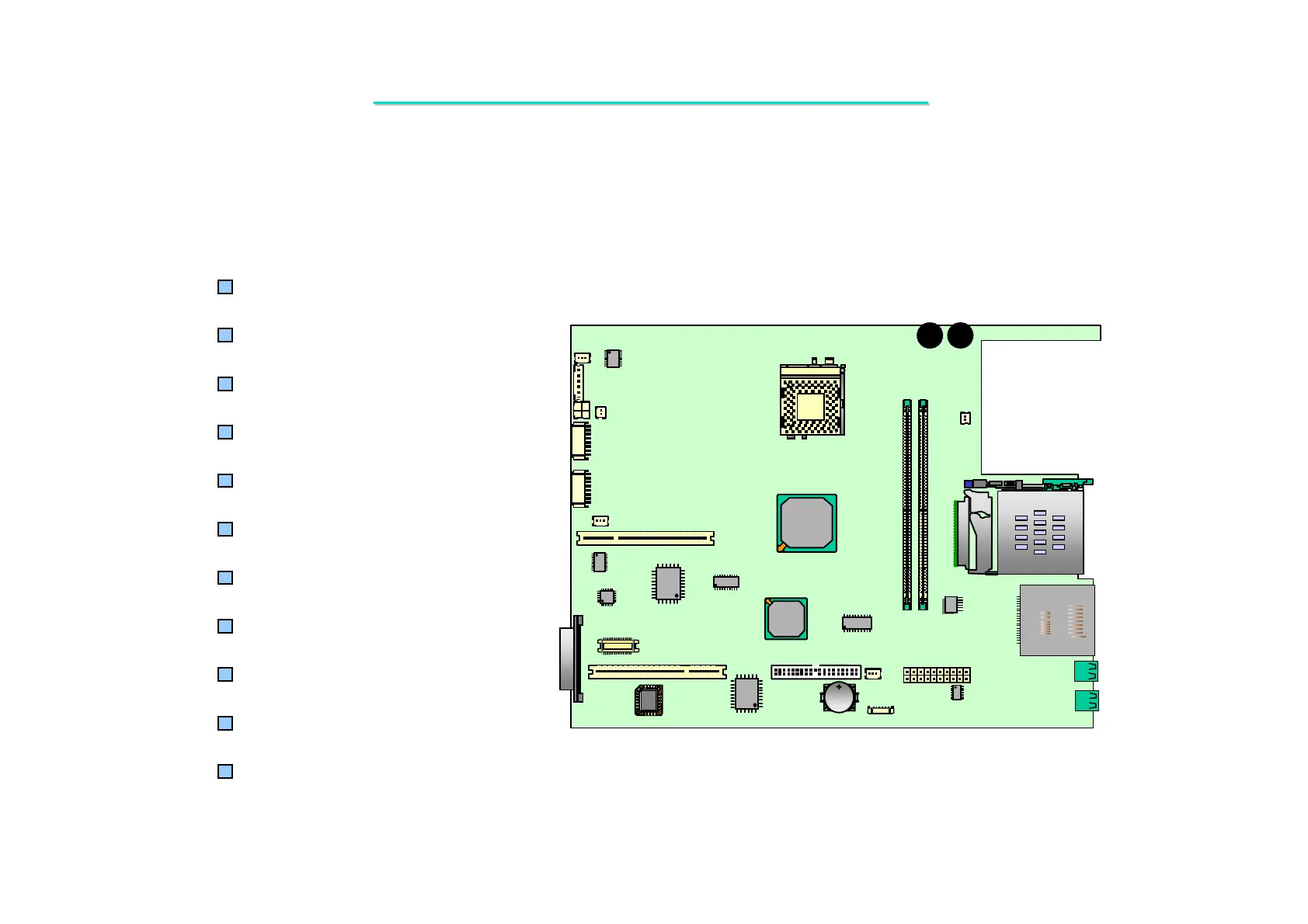

3.1 Mother Board
PU1 CPU Voltage Management
U3 CPU Socket
U5 VT8703 North Bridge
U10 TPA1517 Audio Amplifier
U11 VT6103 LAN Control
U14 VT6306 IEEE1394 Control
U15 VT6112 Audio Control
U18 VT8235 South Bridge
U19 ICS950902 System Clock Control
U28 System BIOS
U27 VT1211 LPC Super I/O
U3
U5
U19
BT1
U18
U11
U14
U10
PU1
U15
U27
U28
