2.2.9 Inverter Board
Disassembly
1. Remove the CPU cover; housing shielding and CPU. (See section 2.2.2 disassembly)
2. Remove the CD/DVD-ROM drive; I/O board; TV tuner board; modem card and memory module. (See section
2.2.3 to 2.2.6 disassembly)
3. Remove the system board. (See section 2.2.7 disassembly)
4. Disconnect four cables from inverter board. Then disconnect two screws fastening the board. (Figure 2-27)

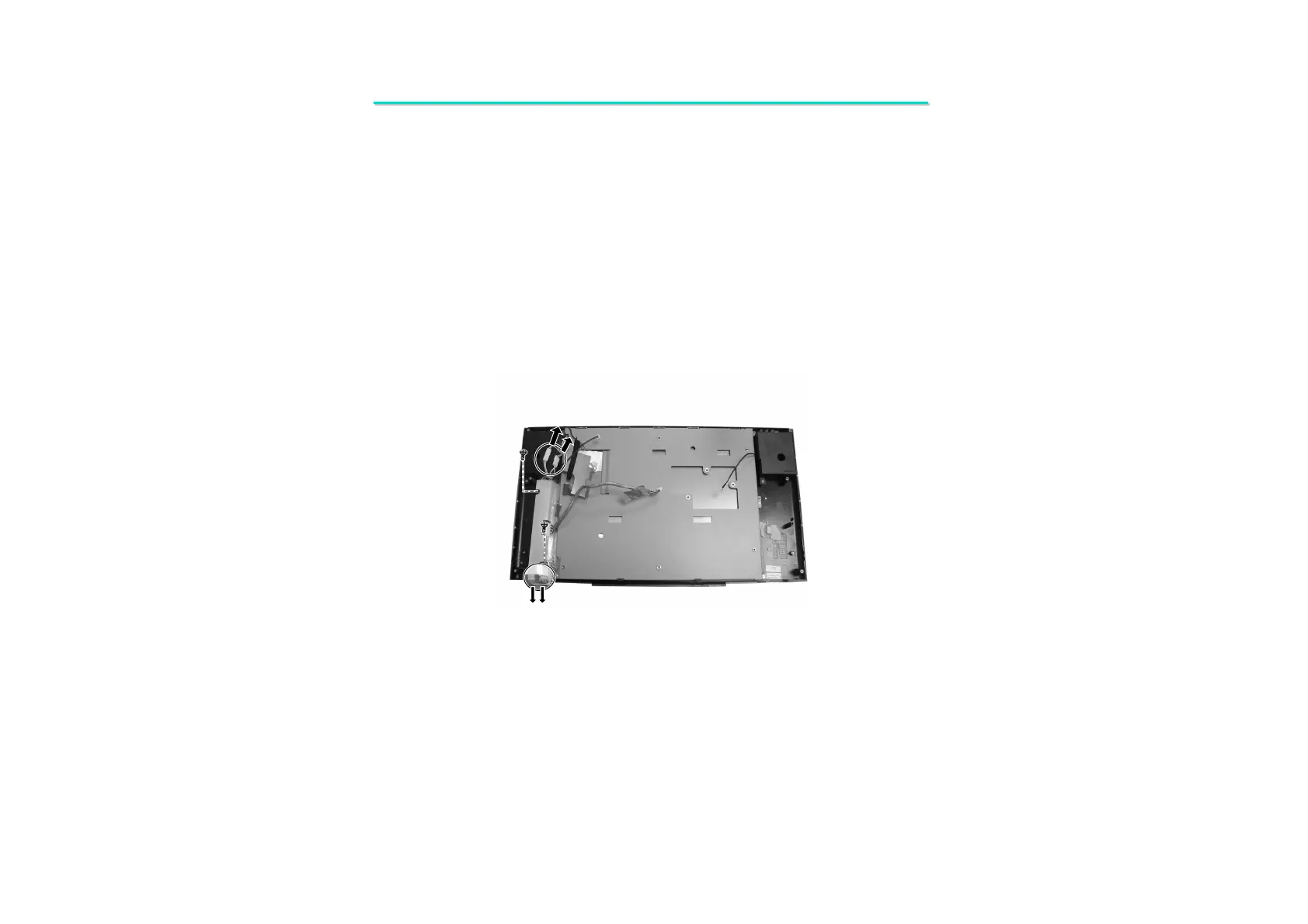

Figure 2-27 Remove the inverter board
Reassembly
1. Fit the inverter board back into the LCD cover and secure with two screws.
2. Reconnect four cables to inverter board.
3. Assemble the system. (See instructions in previous sections)
