2.2.7 System board
Disassembly
1. Remove the CPU cover; housing shielding and CPU. (See section 2.2.2 disassembly)
2. Remove the CD/DVD-ROM drive; I/O board; TV tuner board; modem card and memory module. (See sections
2.2.3 to 2.2.6 disassembly)
3. Disconnect two power cables () and the HDD data cable () . (Figure 2-16)

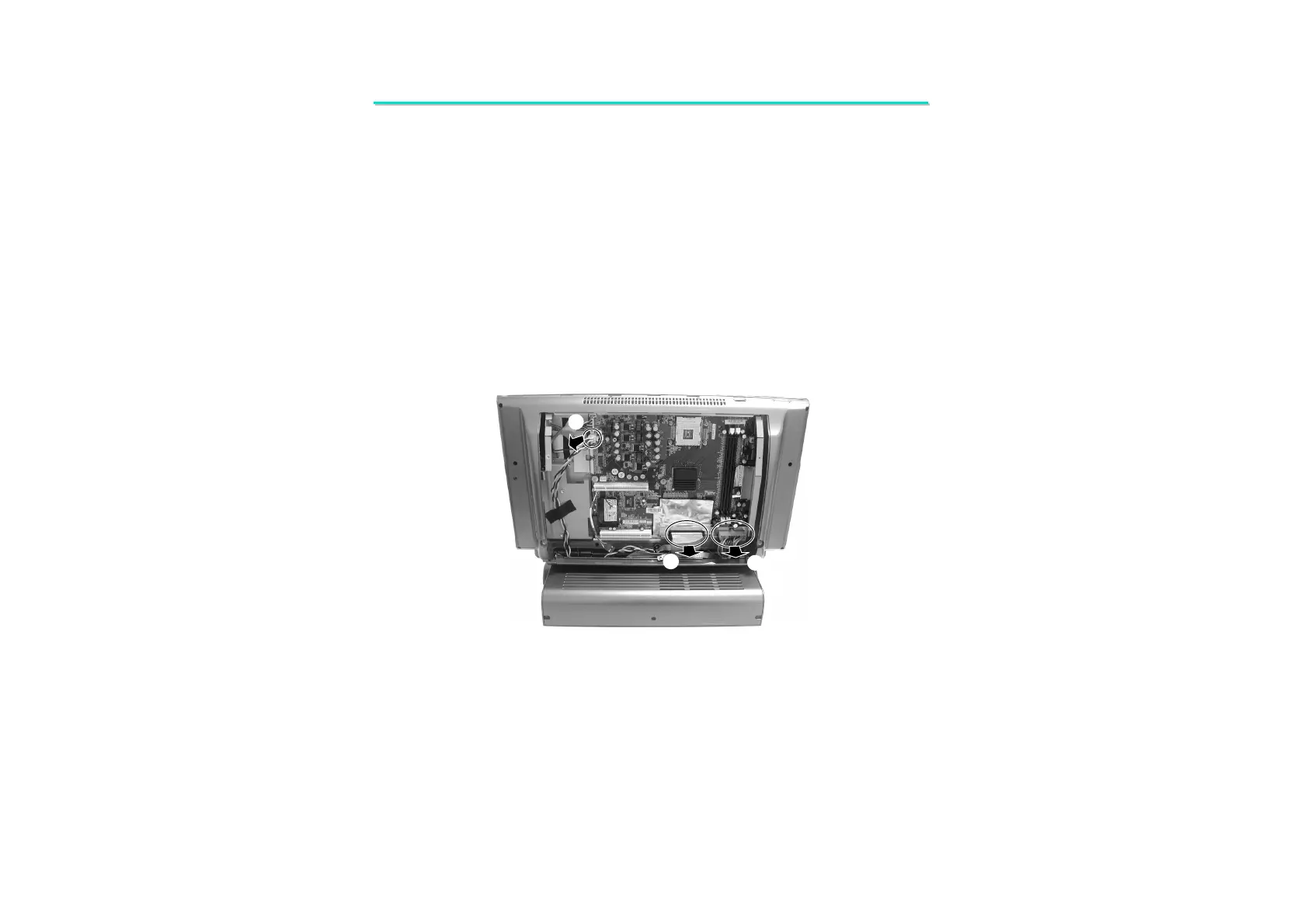

Figure 2-16 Disconnect the cables



