2.2.12 Power Supply
Disassembly
1. Remove the CPU cover. (See the step 1of section 2.2.2 disassembly)
2. Remove three screws fastening the power & HDD’s compartment cover. Then slide the cover separate completely.
(Figure 2-40)
3. Slide the plate(), then lift plate up () to separate it with the door. (Figure 2-41)

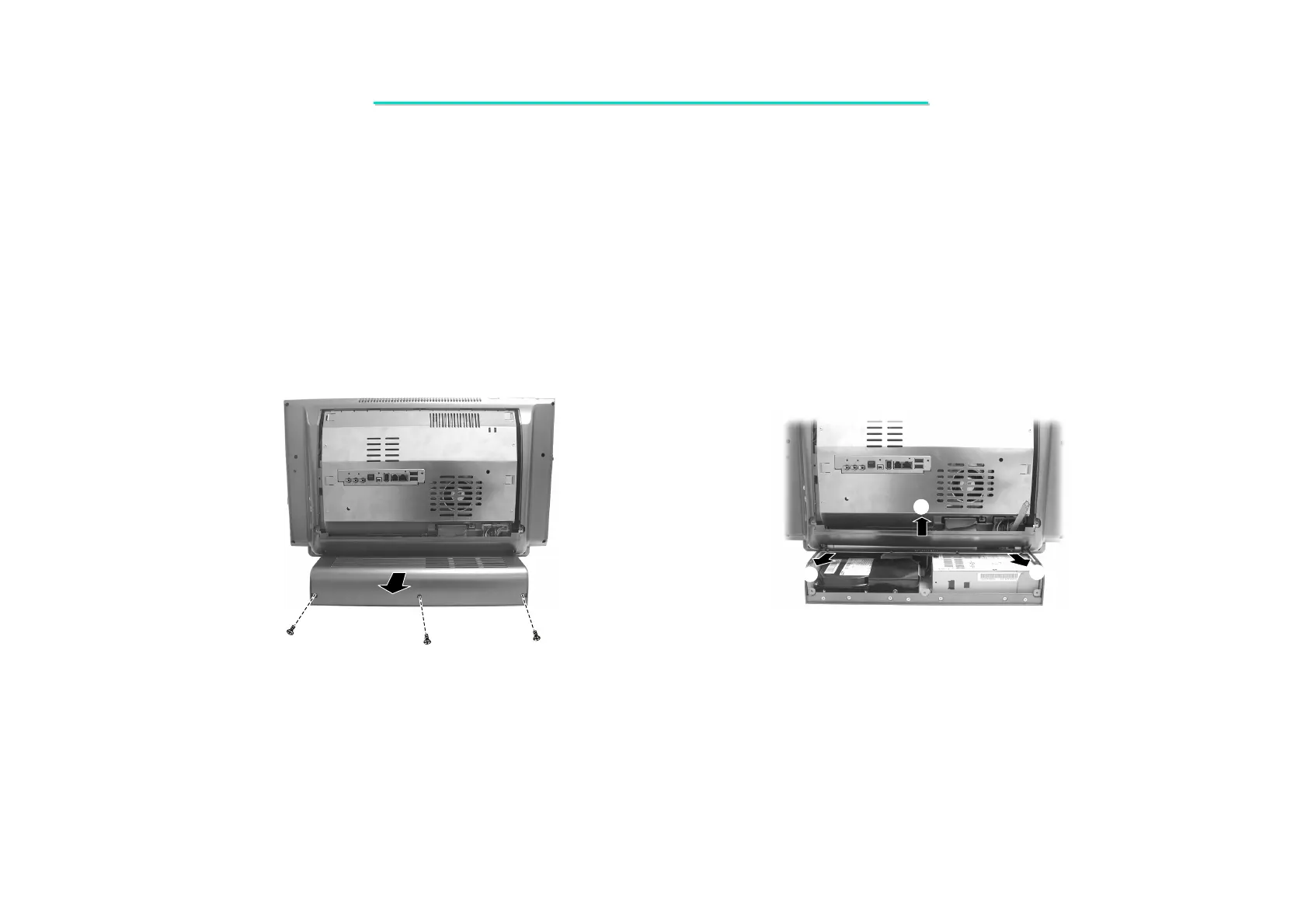

Figure 2-40 Remove the power & HDD Figure2-41 Remove the plate and door
compartment cover



