2.2.1 CD/DVD-ROM Drive
Disassembly
1. Remove one screw locking the CD/DVD-ROM drive. (Figure 2-1)
2. Insert a small rod, such as a straightened paper clip, into CD/DVD-ROM drive’s manual eject hole and push
firmly to release the tray. Then gently pull out the CD/DVD-ROM drive by holding the tray that pops out.
(Figure 2-2)

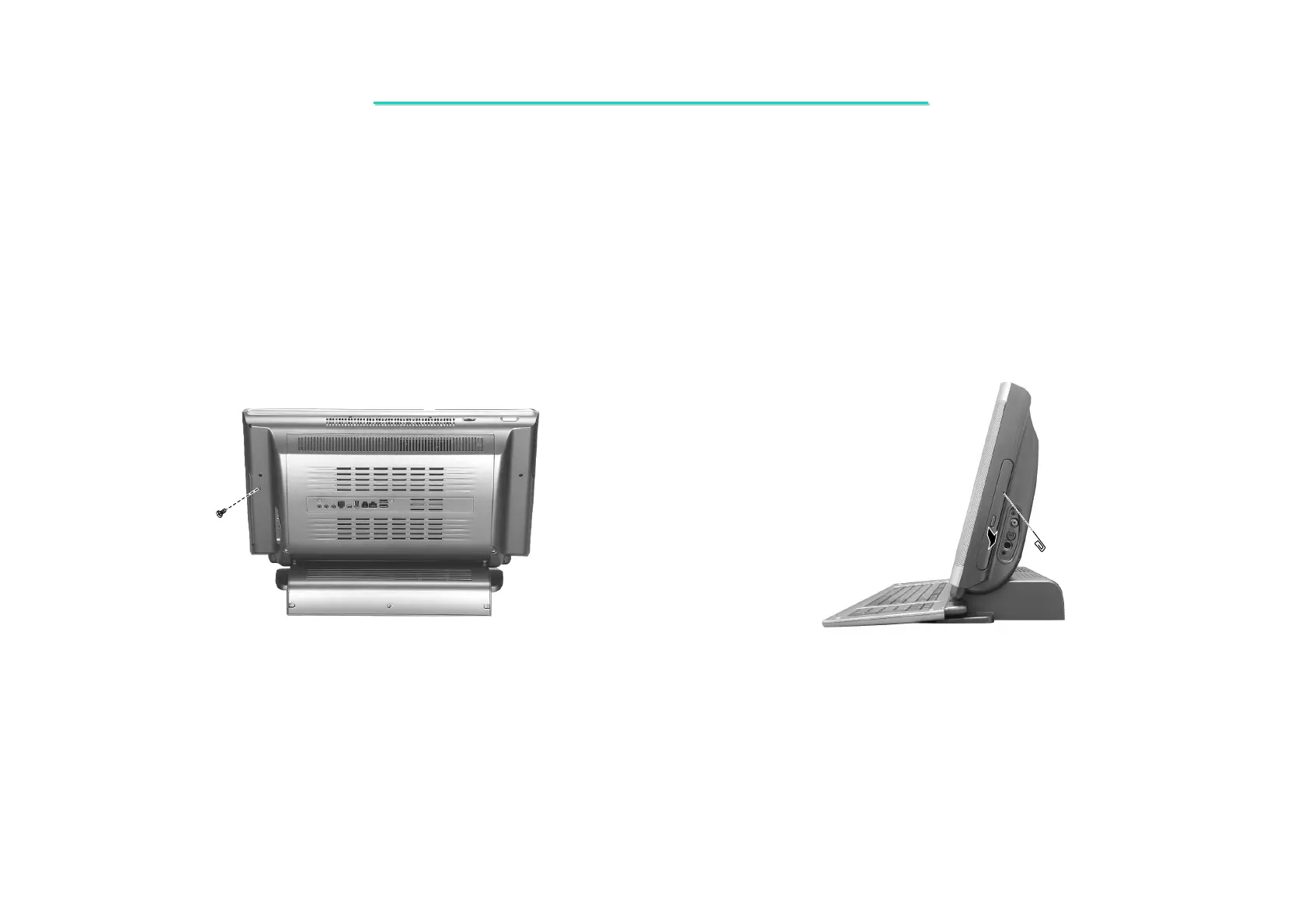

Figure 2-1 Remove one screw Figure 2-2 Remove the CD/DVD-ROM drive
Reassembly
1. Push the CD/DVD-ROM drive into the compartment.
2. Secure the CD/DVD-ROM drive with one screw.
