2.2.2 CPU
Disassembly
1. Remove four screws fastening the CPU cover. (Figure 2-3)
2. Remove five screws fastening the housing shielding. (Figure 2-4)

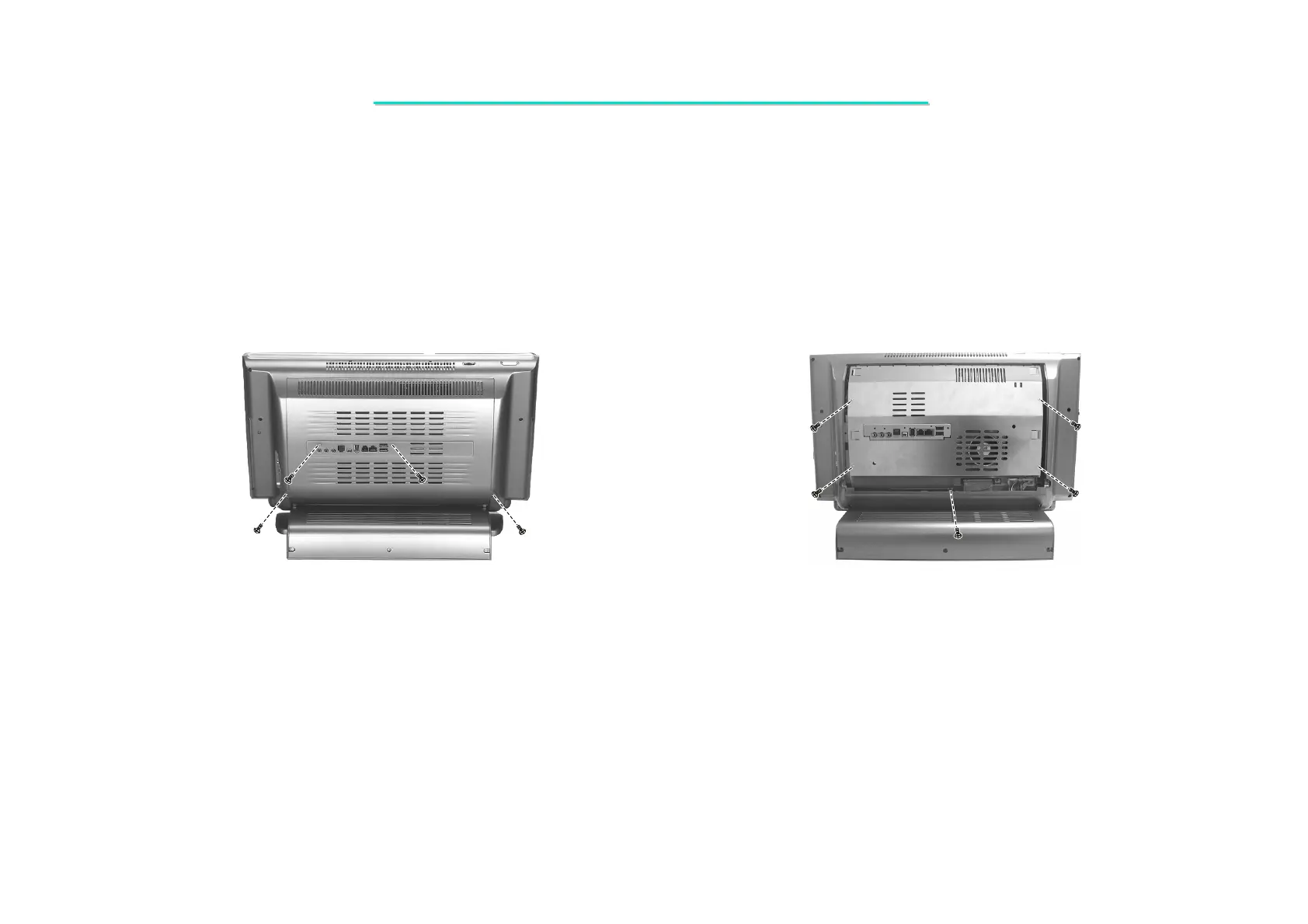

Figure 2-3 Remove the CPU cover Figure 2-4 Remove the housing shielding
