4. Definition & Location of Connectors / Switches

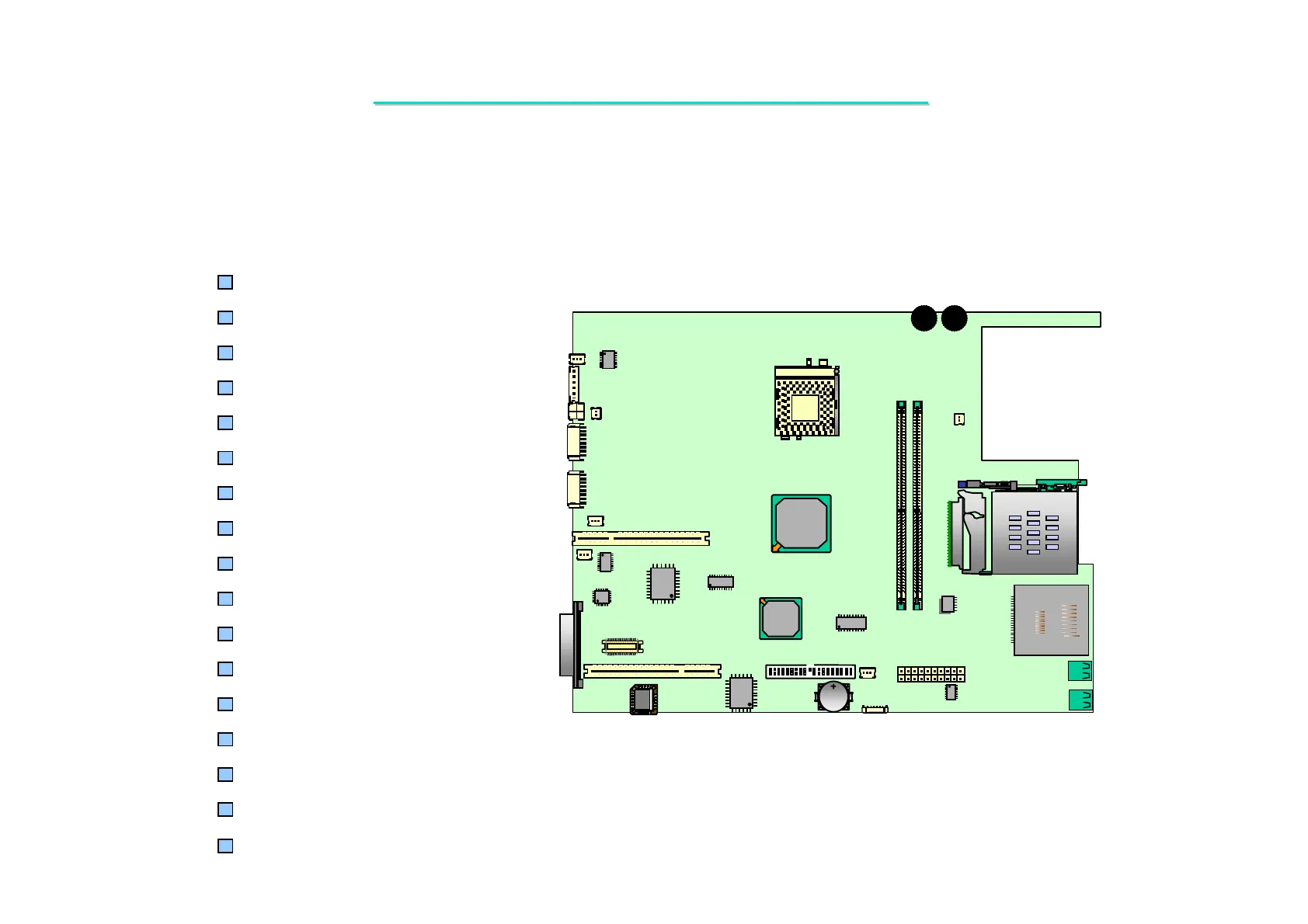

4.1 Mother Board
J1 IR Out Connector
J8,J9,J2 LCD Connector
J3 CPU Power Connector
J6,J7 Speaker Connector
J10 SYSTEM FAN Connector
J20 CPU FAN Connector
J12 I/O Slot
J14 Memory_card Slot
J4,J5 DIMM Slot
J18 CD_ROM Connector
J16 MDC Connector
J13 Video In Connector
J19,24 USB Connector
J21 PCI Slot
J22 Power Connector
J23 HDD Connector
J25 K/B Connector
J24
J19
J14
J5 J4
J6
J22
J25
J20
J23
J12
J13
J10
J8
J9
J7
J3
J2
J1
J16
J18
J21
