Mitel 5340 - Initial Setup for 5304 Phone Service

Mitel IP Phone User Reference Guide Release 4.1
75

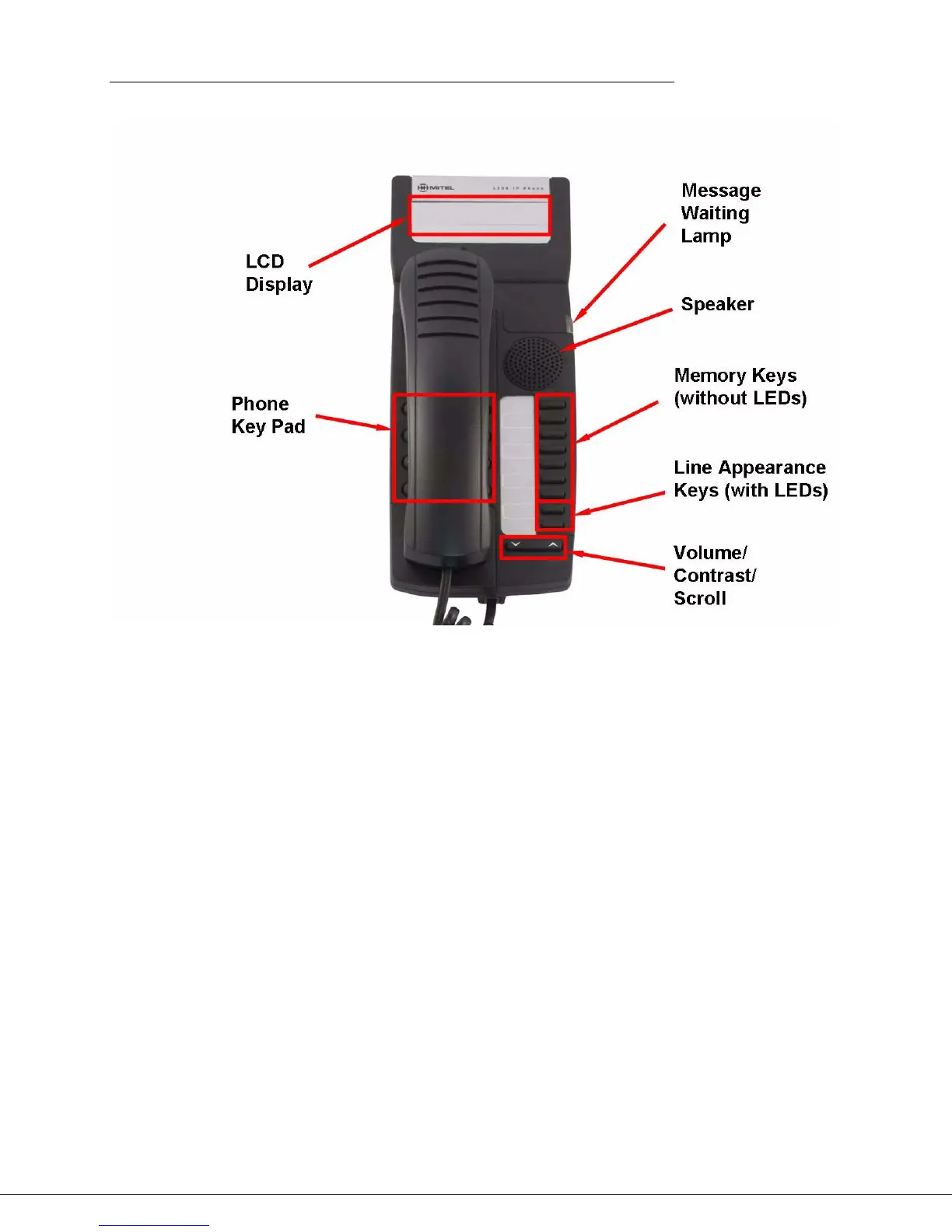

Figure 5: Mitel 5304 IP Phone
Initial setup for 5304 phone service
To set up your new phone service, follow these steps:
• Activate your phone. See “Activating a 5304 phone” on page 75.
• Perform a Quick Set-up. See “Quick set-up” on page 100.
Activating a 5304 phone
To activate a 5304 phone you must physically connect the phone, then log in with
your extension and PIN number.
To activate your phone, follow these steps:
1. Unplug your computer from the network.
2. Plug the phone into the network (through the supplied power pack - consult
the documentation provided in the box).
3. Plug the computer into the phone.
4. Plug the phone power pack into an outlet.
